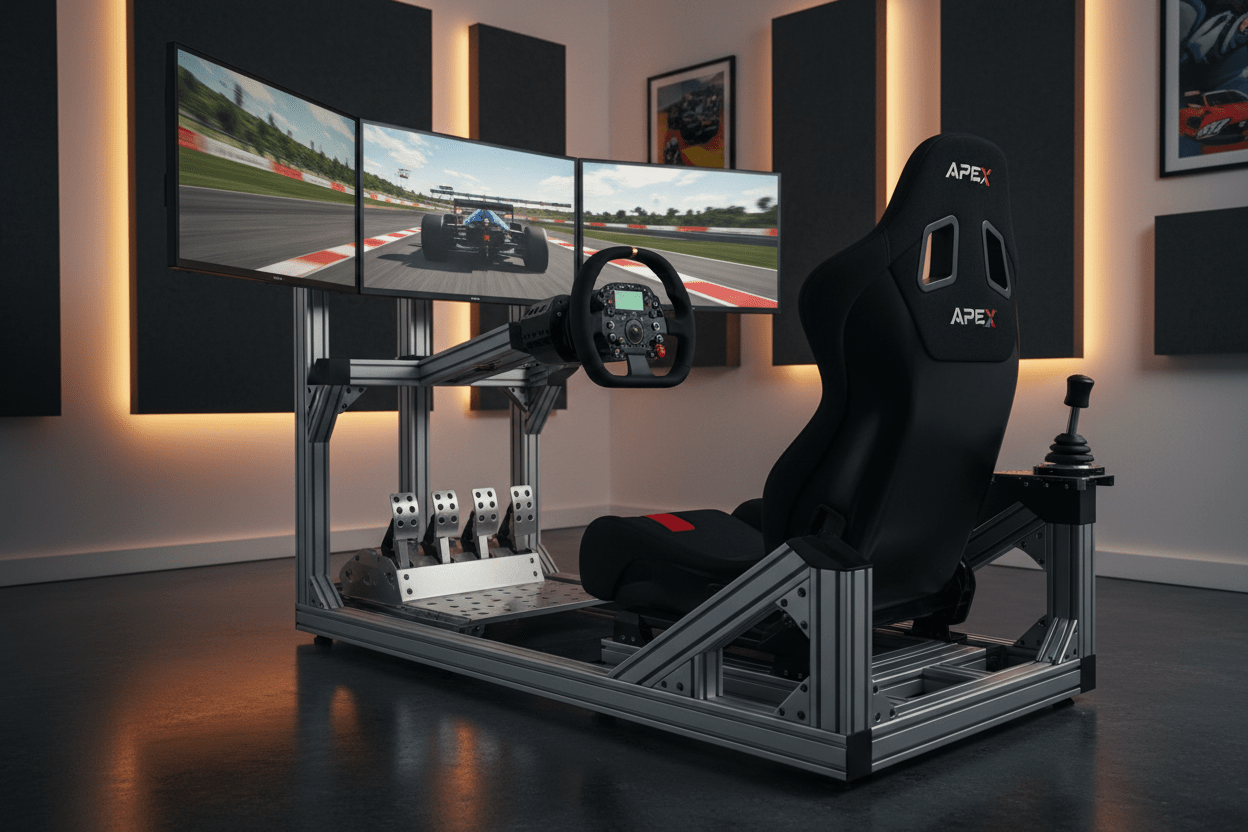

8020 Aluminum Profile Sim Rigs: DIY vs. Pre-Built Cockpits in 2026
Karen Ripley
An aluminum-profile sim rig can provide the rigidity, adjustability, and accessory support required for direct-drive wheelbases, high-force pedals, triple monitors, tactile feedback, and motion upgrades. This guide explains how T-slot cockpits work, what profile sizes actually mean, why DIY is not always cheaper, and how to choose a cockpit that supports your long-term sim racing goals.
Reviewed and updated: July 16, 2026 | Reading time: Approximately 16 minutes
Quick Answer
For most serious home sim racers, a pre-engineered aluminum-profile cockpit is the best starting point. It combines modular T-slot construction with pre-cut profile, matched hardware, tested mounting geometry, instructions, and an accessory ecosystem. A custom DIY 8020 rig makes the most sense when the room, seating position, hybrid racing/flight controls, accessibility needs, or display configuration cannot be served by a standard kit.
Profile size alone does not determine rigidity. Joint design, upright spacing, wheel-mount construction, pedal-deck bracing, fastener preload, span length, and overall geometry all matter.
What Is an 8020 Aluminum Profile Sim Rig?
“80/20” is the name of a major T-slot framing manufacturer, but sim racers often use “8020 rig” as a broad term for a cockpit built from modular aluminum extrusion. Related search terms include aluminum profile sim rig, T-slot racing cockpit, extrusion sim rig, and profile cockpit.
Each extrusion contains continuous channels. T-nuts or specialty fasteners slide into those channels, creating attachment points along the profile instead of limiting the builder to a few factory-drilled holes.
This makes the rig adjustable. A wheel upright, pedal tray, shifter arm, keyboard tray, button box, monitor support, or seat rail can be repositioned without welding or permanently changing the frame.
Not Every Profile System Is Interchangeable
Metric 40-series, metric 45-series, and fractional extrusion systems can use different slot dimensions, fasteners, corner brackets, and hardware standards. Confirm compatibility before combining components from different manufacturers.
The 8020 Advantage: Why Aluminum Profile Works So Well
Modular
Accessories can be added or moved along the slots without drilling new holes into the main frame.
Rigid
Properly selected profiles, joints, and brackets can create a stable base for high-force controls.
Repairable
A damaged bracket, plate, or rail can often be replaced without discarding the cockpit.
Upgradeable
New wheel mounts, pedals, seats, displays, controls, and motion hardware can be incorporated over time.
That modularity is why profile cockpits are common in higher-end systems. A rigid base helps preserve direct-drive steering detail and minimizes movement under heavy braking.
Explore racing simulator cockpits, compare ProSimHQ racing cockpit options, and review sim racing gear and accessories while planning the full build.
DIY vs. Pre-Built Aluminum Profile Sim Rigs
| Decision Factor | DIY Profile Rig | Pre-Built Profile Kit |
|---|---|---|
| Layout freedom | Maximum freedom for unusual rooms, controls, and hybrid use | Flexible within a tested base design |
| Engineering | Builder selects geometry, joints, profiles, and load paths | Manufacturer develops the core structure |
| Parts sourcing | Builder sources every rail, plate, bracket, fastener, and cap | Core frame hardware is packaged together |
| Cutting and machining | May require custom cutting, tapping, or drilling | Profiles and plates typically arrive prepared |
| Instructions | Created by the builder | Assembly documentation is included |
| Accessory ecosystem | Broad but requires compatibility research | Brand-matched accessories are easier to select |
| Time | High: planning, sourcing, correcting, and assembling | Moderate: inventory, assembly, alignment, adjustment |
| Budget predictability | Lower unless the full parts list and freight are known | Higher because the kit captures most core components |
| Best fit | Custom geometry, hybrid controls, unusual accessibility | Most home, team, training, and commercial builds |
Choose DIY When:
- Your room or equipment cannot fit a standard design.
- You need a combined racing and flight simulator.
- You have unusual accessibility or transfer requirements.
- You understand structural framing and can validate load paths.
- You already own compatible extrusion, tools, and hardware.
- The design process is part of the hobby for you.
Choose a Pre-Built Kit When:
- You want predictable compatibility and a known bill of materials.
- You use a direct-drive wheel and high-force pedals.
- You value manufacturer accessories and upgrade paths.
- You would rather spend time racing than designing and sourcing.
- You need repeatable installations for a facility or team.
ProSimHQ offers Trak Racer racing bundles and complete car racing simulator systems for buyers who prefer a coordinated platform.
Structural Rigidity: Solving Direct-Drive and Pedal Flex
A cockpit should keep the wheelbase and pedals in a repeatable relationship to the driver. Movement at the wheel uprights, wheel mount, pedal plate, seat brackets, or frame joints can change how force feedback and braking feel.
Where Flex Usually Appears
- The connection between the base rails and wheel uprights
- The wheel deck or front-mount bracket
- Long unsupported uprights
- The pedal plate under heavy braking
- Seat sliders and thin brackets
- Monitor stands attached to a vibrating cockpit
- Loose brackets or out-of-square joints
Avoid Universal Torque Charts
A claim that a specific wheel torque always requires a specific profile size is too simplistic. Span length, wall thickness, bracket type, upright spacing, plate stiffness, joint design, and assembly quality all matter. Use the cockpit manufacturer’s published wheelbase compatibility or obtain engineering guidance for a custom structure.
Pedal rigidity matters just as much as wheel rigidity. Load-cell, hydraulic, and active pedals can place substantial force into the pedal platform. Review active pedals vs. hydraulic pedals for more context.
40×40 vs. 40×80 vs. 40×120 vs. 40×160 Profile
| Profile Format | Common Uses | Planning Considerations |
|---|---|---|
| 40×40 | Accessory arms, braces, keyboard supports, light-duty crossmembers | Compact and economical; long spans may need reinforcement |
| 40×80 | Base rails, wheel uprights, seat supports, pedal supports | Common balance of stiffness, weight, cost, and compatibility |
| 40×120 | Heavy uprights, high-load crossmembers, reinforced bases | More material and mounting surface; higher weight and cost |
| 40×160 | Heavy-duty or motion-ready structures and specialized builds | Can be excessive for some home rigs; verify the need |
Orientation matters. A rectangular profile resists bending differently depending on which dimension faces the load. A 40×80 rail rotated ninety degrees does not behave the same way under the same force.
More aluminum is not automatically better. Oversizing every rail increases cost, freight, floor load, and assembly difficulty. A better design strengthens the load path with appropriate profile, shorter spans, stronger brackets, and reinforced wheel and pedal interfaces.
Ergonomics: The Most Important Benefit of T-Slot Adjustability
A rigid cockpit can still be uncomfortable if the seating position is wrong. T-slot construction makes it easier to adjust wheel height, wheel distance, pedal reach, pedal angle, seat position, shifter location, and accessory placement.
Seat Planning
- Confirm seat width and side-bolster clearance.
- Choose fixed brackets or sliders based on the number of drivers.
- Check seat-bottom angle and lumbar support.
- Verify the seat mounting pattern.
- Account for the height added by sliders and brackets.
Wheel Position
- Keep shoulders supported rather than reaching forward.
- Allow elbow bend through the steering range.
- Confirm knee clearance beneath the wheel mount.
- Check display sightlines after the wheel height is set.
- Choose front, side, or deck mounting based on the wheelbase.
Pedal Position
- Set distance so the knee does not lock at full travel.
- Support the heel and maintain a repeatable foot position.
- Use angle adjustment to match GT, formula, rally, or road-car posture.
- Test the desired brake force before final tightening.
- Leave room for cable strain relief and maintenance.
Browse racing simulator seats while planning the complete seating system.
Monitor Mounts, Shifters, Handbrakes, and Future Upgrades
One of the strongest reasons to choose aluminum profile is the accessory ecosystem. Common additions include:
- Single, ultrawide, or triple-monitor stands
- Keyboard and mouse trays
- Shifter and handbrake mounts
- Button boxes and stream decks
- Speakers and tactile transducers
- Seat-belt tensioners and harness mounts
- PC shelves and console mounts
- Wheel and pedal upgrade plates
- Motion actuators or traction-loss systems
- Flight controls for hybrid simulation
Integrated vs. Freestanding Monitor Stands
An integrated stand reduces footprint and moves with the rig. A freestanding stand isolates the displays from wheel, pedal, tactile, and motion vibration. Triple monitors are especially sensitive to alignment.
For a full ecosystem overview, read The Ultimate Sim Racing Hardware Guide and explore the ProSimHQ racing simulator resource center.
Aluminum Profile vs. Tubular Steel Sim Rigs
| Decision Factor | Aluminum Profile | Tubular Steel |
|---|---|---|
| Adjustability | High; components can move along T-slots | Depends on brackets and drilled positions |
| Accessory expansion | Broad and easy to customize | Often brand-specific or requires custom brackets |
| Appearance | Industrial and functional | Can resemble a welded race-car chassis |
| Packaging | Can be wide and visually substantial | Can be compact and sculpted |
| Modification | Usually reversible | May require drilling or welding |
| Rigidity | Excellent when profiles and joints are correctly designed | Excellent when tube size, wall thickness, welds, and bracing are correct |
| Best fit | Long-term upgrades and broad compatibility | Buyers prioritizing styling or a specific tested system |
Do not assume all tubular rigs flex or all aluminum rigs are rigid. A poorly braced extrusion frame can move, while a well-engineered steel cockpit can be extremely stable.
How to Design a Custom 8020 Sim Rig
- Define the equipment: List the exact wheelbase, pedals, seat, shifter, handbrake, displays, tactile equipment, computer, and future upgrades.
- Measure the driver: Record seat width, hip-to-heel reach, wheel distance, shoulder height, and entry clearance.
- Measure the room: Include walkways, outlets, ventilation, monitor depth, and maintenance space.
- Draw the load paths: Identify how steering torque, braking force, driver weight, and accessory loads move through the frame.
- Model the rig: Use CAD or a profile configurator with the exact extrusion and fastener library.
- Build the bill of materials: Count every profile, fastener, bracket, plate, foot, cap, and accessory.
- Add contingency: Include spare T-nuts, bolts, and a correction allowance.
- Dry-fit before final tightening: Confirm ergonomics and squareness before locking the frame.
- Test under load: Apply braking and steering force and inspect the wheel, pedal, and seat structures.
- Document the final build: Save measurements and part numbers for future upgrades.
Assembly Quality Checklist
- Inventory all parts before starting.
- Deburr cut profile and cover exposed ends.
- Use a square during frame assembly.
- Keep base rails parallel.
- Tighten joints progressively rather than fully tightening one corner first.
- Follow the hardware manufacturer’s torque guidance where provided.
- Recheck fasteners after the first several sessions.
- Secure cables away from sliders, pedals, and motion components.
Illustrative Case Study: From Entry-Level Stand to Direct-Drive Cockpit
Case type: Illustrative planning example—not a claim about a specific ProSimHQ customer.
Starting setup: Foldable wheel stand, belt-driven wheel, basic pedals, office chair, and one monitor.
Upgrade goal: Direct-drive wheelbase, load-cell pedals, racing seat, ultrawide monitor, shifter, and future tactile feedback.
Option 1: Custom DIY Profile Rig
The builder creates a compact frame around the room dimensions and reuses a locally sourced seat. The design process reveals that custom wheel and pedal plates, freight, fasteners, feet, and accessories close much of the price gap.
Option 2: Pre-Built Profile Kit
The buyer selects a compatible cockpit with front-mount support, adjustable pedal plate, seat brackets, and available monitor and shifter accessories. The package costs more than the raw DIY profile but reduces sourcing and fabrication risk.
Likely recommendation: The pre-built kit is the stronger choice because the planned equipment follows a standard layout and the buyer values faster assembly and known compatibility. DIY would become more attractive if the room or controls required custom geometry.
8020 Sim Rig Buying Checklist
- Is the cockpit explicitly compatible with your wheelbase and mounting style?
- Can the pedal deck support your expected brake force?
- Does the seat mounting solution fit the seat and driver?
- Is there enough wheel, pedal, and seat adjustment?
- Can the frame support the chosen monitor configuration?
- Are shifter, handbrake, keyboard, and button-box mounts available?
- Can the cockpit accept tactile or motion upgrades?
- Are replacement plates and hardware available?
- Will the assembled footprint fit the room and doorways?
- Does the delivered price include seat, sliders, mounts, and freight?
Final Verdict
Aluminum profile remains one of the most flexible foundations for a serious simulator because it can evolve with the controls, seating, displays, and accessories. But the best profile cockpit is not automatically the heaviest one or the one with the largest extrusion.
Choose a design with a clear load path, strong wheel and pedal interfaces, useful adjustment, compatible accessories, and enough capacity for the equipment you realistically plan to own. For most buyers, a pre-built aluminum-profile kit delivers the strongest balance of rigidity, modularity, time savings, and predictable cost. DIY remains the right answer when the design must be genuinely custom.
Frequently Asked Questions
What does 8020 mean in sim racing?
80/20 is a T-slot framing manufacturer, but sim racers often use “8020 rig” as a generic term for an aluminum-extrusion cockpit.
Is an aluminum profile sim rig worth it?
It is often worth it for drivers who need high rigidity, broad adjustment, and long-term compatibility with direct-drive wheels, high-force pedals, multiple displays, and accessories.
Is a DIY 8020 rig cheaper?
It can be, especially with local materials and existing tools, but fasteners, plates, machining, freight, accessories, and time can close the gap quickly.
What profile size is best for a sim rig?
There is no universal size. Many cockpits combine 40×80 structural rails with smaller accessory profiles and larger profiles only where loads require them.
Is 40×40 strong enough for a sim rig?
It can be suitable for accessories, braces, and some compact designs. Suitability depends on span length, joints, load direction, and the complete frame geometry.
Is 40×80 enough for direct drive?
Many direct-drive-compatible cockpits use 40×80 profile, but wheel mount, bracket design, span, joints, and overall structure determine performance.
Do I need 40×160 profile?
Not necessarily. It may be used in heavy-duty or motion-ready designs, but it can add unnecessary cost and weight to a typical home cockpit.
What is the best cockpit for a high-torque direct-drive wheel?
Choose a cockpit whose manufacturer explicitly supports the wheelbase and mounting method, with a rigid wheel interface and well-braced uprights.
Why does my wheel deck flex?
Common causes include a thin mounting plate, long unsupported span, loose joints, insufficient bracing, or a mount not designed for the wheelbase.
Why does my pedal tray flex?
The plate, adjustment brackets, crossmembers, or frame connection may be insufficient for the applied brake force.
Should I use an integrated monitor mount?
It saves space, but a freestanding stand can isolate displays from cockpit vibration and simplify triple-monitor alignment.
Can I add motion to an aluminum profile rig?
Many profile cockpits can accept motion, but the frame, seat, controls, mounts, electrical system, and moving clearances must suit the selected platform.
Can I add bass shakers to an 8020 rig?
Yes. Aluminum profile provides many mounting options, although vibration isolation and zone separation require careful planning.
Is aluminum profile better than tubular steel?
Profile is usually easier to adjust and modify. Tubular steel can offer excellent rigidity and styling when properly engineered.
Can I combine different extrusion brands?
Sometimes, but slot dimensions, series, fasteners, and brackets must be compatible.
Should I buy the seat with the cockpit?
It can simplify compatibility, but verify seat width, mounting pattern, brackets, sliders, support, and driver fit.
Do aluminum profile rigs loosen over time?
Properly assembled joints can remain stable, but fasteners should be checked after initial use and periodically thereafter.
How much space does a profile rig need?
The cockpit may be compact, but monitors, seat movement, entry space, shifter arms, and maintenance access increase the installation footprint.
What tools are needed?
Typical assembly requires metric hex tools, measuring tools, and a square. A custom build may also require saws, taps, drills, files, and deburring tools.
What should I buy first: cockpit or wheelbase?
Plan them together. If one must come first, choose a cockpit capable of supporting your expected future wheelbase and pedals.
Research and Further Reading
- 80/20 Inc. — official T-slot framing products and engineering resources.
- Trak Racer — manufacturer information for aluminum-profile racing cockpits and accessories.
- ProSimHQ Sim Racing Hardware Ecosystem Guide.
- ProSimHQ Sim Racing Setup Cost Guide.
- ProSimHQ Motion Platform Realism Guide.
Build a Sim Racing Cockpit That Can Grow With You
ProSimHQ can help you compare cockpits, seats, bundles, controls, displays, tactile systems, and motion-ready solutions for home, training, and commercial environments.
Shop Racing CockpitsExplore Racing SimulatorsProSimHQ Editorial Note
ProSimHQ is an independent retailer of simulation equipment from multiple manufacturers. Product specifications, load ratings, compatibility, dimensions, accessories, warranties, and availability are controlled by the applicable manufacturer and may change. This guide is educational and does not replace product-specific assembly instructions or structural engineering advice.
