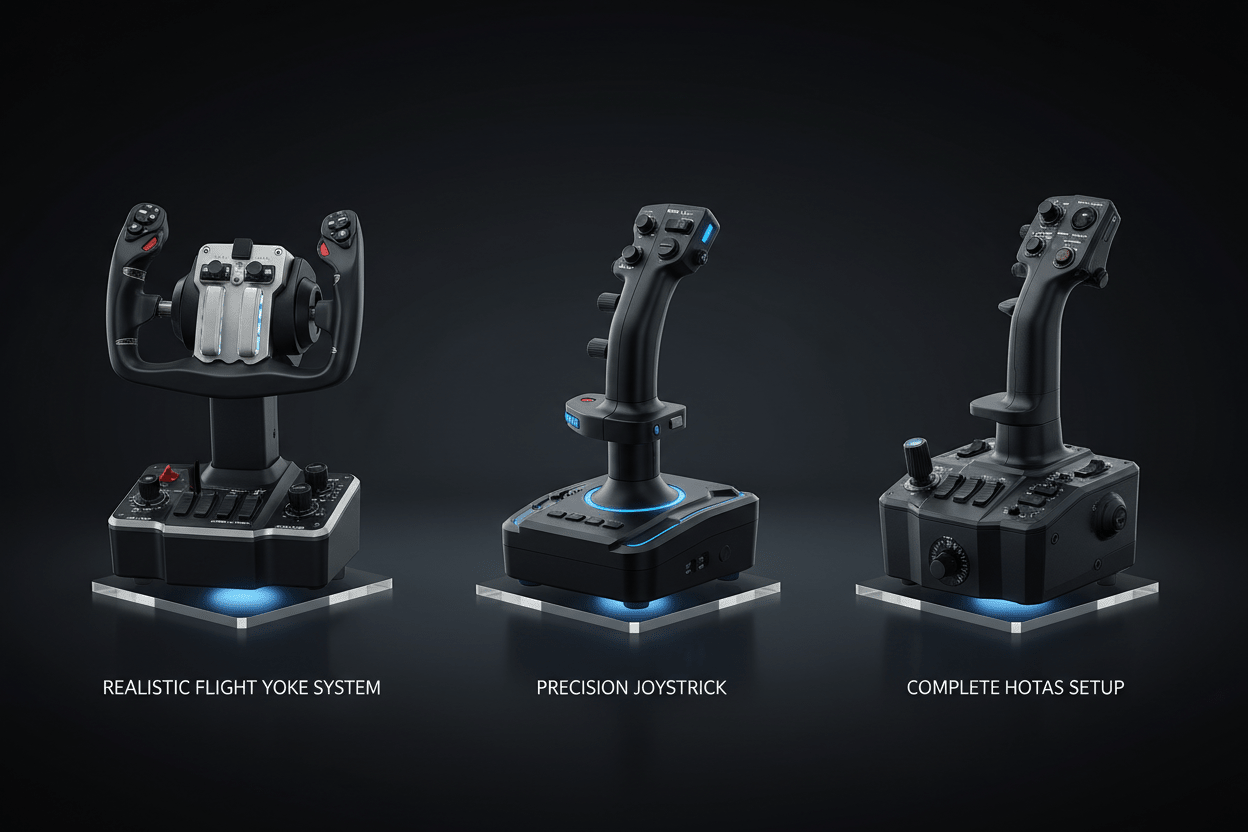

Yoke vs. Joystick vs. HOTAS: Choosing the Ultimate Flight Sim Controls (2026 Guide)
Karen Ripley
Flight Sim Controls & Hardware Guide
Flight simulation is one of the most technical and rewarding hobbies in the world—whether you’re cruising through crosswinds in a Cessna 172, managing a Boeing 737 flight deck, or flying low-level combat sorties. While a mouse and keyboard can introduce you to the skies, they lack the smooth analog precision, progressive resistance, and muscle memory needed to execute stabilized approaches or dogfight maneuvers.
Reviewed and updated: July 2026 | Reading time: Approximately 12 minutes
Quick Take: Which Control Layout Do You Need?
Yokes are best for General Aviation (GA) and Boeing commercial airliner simulation because they replicate true dual-handed control columns. Joysticks (Flight Sticks) offer the highest versatility for mixed flying, Airbus fly-by-wire setups, and space flight. HOTAS (Hands On Throttle And Stick) systems dominate combat flight (DCS World) and complex multi-engine aircraft where rapid hat-switch access and split-throttle control are critical.
Why Analog Controls Matter: Sensor Tech & Resolution
Keyboard and mouse inputs are binary (either 0% or 100% deflection), forcing flight software to artificially smooth inputs. Real flight requires micro-adjustments along pitch, roll, and yaw axes—especially during flare landings, hovering, and formation flying.
Modern flight controls rely on two primary internal sensor architectures:
- Potentiometer Sensors: Common in entry-level controllers, potentiometers measure physical contact resistance. Over time, dust accumulation leads to axis jitter and dead-zone drift.
- Contactless Hall-Effect Magnetic Sensors (3D Hall): Found in high-end yokes and joysticks (such as Honeycomb, Turtle Beach, and Virpil hardware), magnetic sensors detect movement without physical contact, providing 12-bit to 16-bit resolution (up to 65,536 distinct values per axis) with zero wear or drift.
- Force Feedback (FFB) & Active Yokes: Premium flight yokes utilize motorized FFB gimbals that dynamically increase resistance based on indicated airspeed (IAS) and aerodynamic trim forces, simulating real control column stiffness.
👉 Planning a VR flight rig? Read our comprehensive VR Flight Simulation Optimization & Immersion Guide.
Yoke vs. Joystick vs. HOTAS Comparison Matrix
| Control Architecture | Primary Flight Application | Desk / Rig Footprint | Key Strengths | Limitations |
|---|---|---|---|---|
| Flight Yoke + Throttle Quadrant | Cessna, Beechcraft, Piper, Boeing 737 / 777 / 787 | Large forward depth; requires robust desk clamping or rig plate | True-to-life 180° pitch/roll control; precise trim control for long-haul IFR | Bulkier storage; less suited for fast combat or space maneuvers |
| Standalone Joystick / Side-Stick | Airbus A320 / A350, Helicopters, General Mixed Flying | Compact; easily sets up on a standard desk or mouse pad | Versatile, ambidextrous options; affordable entry point | Fewer accessible switches on the base during intensive combat |
| HOTAS (Stick + Split Throttle) | DCS World Combat (F-16, A-10C, F/A-18), MSFS Military Ops | Dual footprint; requires left/right side mounting | Maximum button mapping; split-engine controls and radar hat switches | Higher total system cost; requires dedicated side mounts |
| HOCAS (Stick + Helicopter Collective) | Helicopters (Bell 407, UH-60, Airbus H125 in MSFS 2024) | Requires low-mounted left-hand collective lever and center stick | Precise main-rotor blade pitch control; un-springed friction friction levers | Niche control layout specifically designed for rotary-wing aviation |
Flight Yokes: GA & Commercial Aviation
Flight yokes replicate the push-pull (pitch) and rotation (roll) control column found in traditional aircraft. Because a yoke utilizes a two-handed grip or left-hand primary hold, it provides a longer physical control arc, enabling millimeter-precise pitch adjustments during final approach.
180° Travel vs. 90° Travel Yokes
Entry-level yokes often limit rotation to 90° total (45° left / 45° right). Premium yokes (such as the Honeycomb Alpha or Thrustmaster TCA Boeing Yoke) feature full 180° rotation (90° left / 90° right) with steel shafts and linear ball bearings, matching the exact roll ratio of real general aviation aircraft.
👉 Browse flight controls: ProSimHQ Flight Controls, Yokes & Throttles Collection.
Joysticks & HOSAS: Airbus & Space Flight
Joysticks (side-sticks) control pitch and roll through a single gimbal base. They represent the modern standard for fly-by-wire commercial airliners (Airbus A320/A350), military jets, helicopters, and space simulators.
Dual-Stick (HOSAS) for Space Simulators
For space flight simulation (Star Citizen, Elite Dangerous), players utilize HOSAS (Hands On Stick And Stick) setups. Using two joysticks simultaneously allows 6 Degrees of Freedom (6DoF)—controlling pitch, roll, and yaw on the right stick while managing lateral, vertical, and forward/reverse strafe vectoring on the left stick.
HOTAS & HOCAS: Combat & Helicopter Collectives
A HOTAS setup pairs a flight stick with an independent, multi-axis throttle quadrant. The primary design philosophy of HOTAS is to keep the pilot's hands on the controls at all times during high-G combat maneuvers.
- Multi-Stage Detents: Premium throttles feature physical detents (notches) for Idle, Afterburner, and Reverse Thrust cutoffs.
- Split-Throttle Levers: Allows independent engine control for multi-engine jet fighters or twin-engine airliners.
- Helicopter Collectives (HOCAS): Rotary-wing aircraft require a collective lever mounted low to the left of the seat. Unlike fixed-wing throttles, a collective remains in place via adjustable mechanical friction without internal centering springs.
The Essential Addition: Rudder Pedals & Toe Brakes
Regardless of whether you choose a yoke or joystick, rudder pedals are the single most important hardware addition for control realism. While some entry-level joysticks feature a twist-yaw axis, physical pedals separate yaw control from your hands.
Dedicated rudder pedals provide two independent inputs:
- Sliding Yaw Axis: Controls the vertical tail fin for coordinated turns in flight and nose-wheel steering while taxiing on the ground.
- Differential Toe Brakes: Independent left and right top-hinged pedals that allow you to brake individual main landing gear wheels for tight differential turns on runway tarmac.
Ergonomics & Mounting: Desk Clamps vs. Dedicated Flight Rigs
Flight control placement dictates your posture during multi-hour flight sessions:
- Desk Mounting (C-Clamps): Yokes clamp to the front edge of a desk, raising the control shaft to natural chest height. However, heavy yokes or HOTAS throttles can slide or flex on lightweight desks.
- Center Stick vs. Side-Stick Positioning: Military jet joysticks and helicopter cyclic sticks are ergonomically designed for low center-mounting between the pilot's legs. Airbus side-sticks and general aviation joysticks mount to the side.
- Dedicated Flight Simulator Cockpits: Professional flight chassis (such as Next Level Racing Flight Simulator rigs) feature pre-drilled steel plates that lock yokes, throttles, collectives, and rudder pedals in fixed, vibration-free positions.
👉 Explore cockpit frames: Compare Flight Simulator Cockpits & Seats at ProSimHQ.
VR Flight Sim: Muscle Memory & Blind Tactile Mapping
Flying in virtual reality completely removes your sight of real-world desk hardware. To fly effectively in VR without taking off your headset, your control layout must rely on blind tactile identification:
- Physical Switch Differentiation: Select throttles and joysticks with distinct button shapes (e.g., toggle switches vs. rotary knobs vs. hat switches) so your fingers can identify controls by feel alone.
- Fixed Spatial Alignment: Mounting your flight controls to a dedicated cockpit chassis ensures your physical throttle and yoke are in the exact same spatial location as the virtual cockpit controls rendered inside your VR headset.
Planning Case Study: Multi-Mission Cockpit Setup
Pilot Profile: A flight simmer using MSFS 2024 who splits time between general aviation (Cessna 172), commercial airliners (Boeing 737), and combat jets (DCS World).
Recommended Hardware Pipeline
- Primary Controls: Honeycomb Alpha Flight Controls Yoke + Modular HOTAS Joystick.
- Throttle Management: Honeycomb Bravo Throttle Quadrant (supports multi-engine GA levers, commercial Boeing auto-throttle levers, and flap/speedbrake controls).
- Pedal Architecture: Charlie Rudder Pedals with aluminum toe-brakes and adjustable tension.
- Cockpit Chassis: Next Level Racing Flight Simulator Seat & Chassis equipped with modular side arms and center HOTAS cutout.
Frequently Asked Questions
Can I fly a Boeing airliner with a joystick or HOTAS?
Yes. Simulator software allows you to map pitch and roll axes to any connected joystick, HOTAS, or yoke. While a yoke matches real Boeing control columns, a joystick works smoothly for all aircraft types.
Do I need rudder pedals if my joystick has a twist-yaw axis?
Twist-yaw joysticks work well for beginners, but dedicated rudder pedals provide superior control precision for crosswind landings, taxiing, and differential toe-braking. Pedals are strongly recommended for helicopter simulation.
What is the difference between Hall-Effect sensors and potentiometers?
Potentiometers use mechanical wipers that wear out and create signal jitter over time. Contactless Hall-Effect magnetic sensors detect position via magnetic fields, offering zero physical wear, higher precision, and permanent axis stability.
How do I mount a HOTAS throttle and joystick to my desk?
HOTAS setups can sit directly on a desk, but heavy-duty metal desk clamps (or low-profile side mounts attached to a flight seat) lower the controls to proper lap level, eliminating shoulder strain during long sessions.
