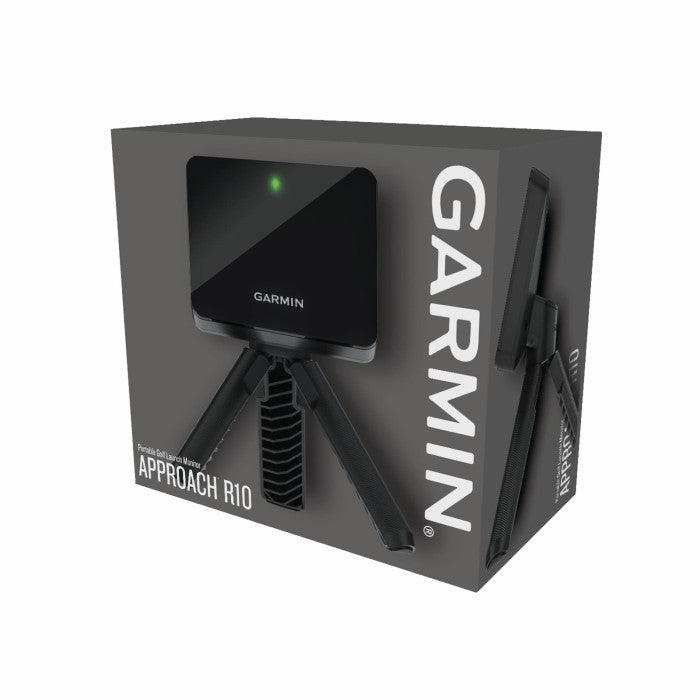

The Garmin Approach® R10 (part number 010-02356-00) is a portable radar launch monitor that sits on its tripod behind the golfer and reports ball and club data to the Garmin Golf™ app on a paired smartphone. It can be used indoors, in the backyard, or at the driving range, and it can also feed shot data to compatible third-party simulator software, which makes it a practical entry point for a home simulator bay.
Because the R10 reads the shot from behind the ball, the room has to hold the monitor, the golfer, and the ball flight in one line. Garmin places the unit 6 to 8 ft behind the ball and asks for at least 8 ft between the ball and the impact screen or net, with a minimum indoor space of 15 ft long, 8 ft wide, and 8 ft high.
Garage and basement bays need a second check: Garmin notes that large electronics, fans, heaters, fluorescent lights, and shiny or metallic surfaces such as finished garage floors can affect radar performance.
The R10 measures each shot with radar and sends the results to the Garmin Golf app, where shots can be reviewed on a dispersion chart.
Garmin states the R10 reads both swings using the same alignment, with no settings to change.
A flashing green status LED shows the monitor is ready for the next shot.
Radar detection is not affected by lighting, although video recording still needs light.
Garmin lists 14 launch monitor metrics for the Approach R10.
Club head speed, club face angle, club path angle, and angle of attack.
Ball speed, launch angle, launch direction, spin axis, spin rate, apex height, smash factor, carry distance, total distance, and deviation distance.
The Garmin Golf app is the R10's primary interface. Some features require an active Garmin Golf membership.
Garmin's simulator experience covers more than 43,000 courses and requires an active Garmin Golf membership.
Automatically recorded clips show your shot stats overlaid on each swing. Storing clips requires a membership.
Garmin lists driving range, driving range target practice, saved club stats, and swing speed training.
Garmin states the R10 is compatible with several third-party simulation experiences. Each requires its own subscription or purchase.
Listed by Garmin as a compatible simulator.
Listed by Garmin; an E6 subscription is required.
Listed by Garmin as a compatible simulator.
Garmin publishes minimum requirements for indoor use. A larger space can improve accuracy.
At least 15 ft long, 8 ft wide, and 8 ft high for indoor use.
On the ground, 6 to 8 ft behind the ball, with the red alignment line pointed through the ball to the target.
At least 8 ft between the ball and the impact screen or net.
A mat or hitting space of at least 2 ft by 2 ft.
Near the height of the ball. On a raised hitting surface, the bottom of the unit should sit above the surface the ball is on.
Garmin warns that other mounts or wall mounting could cause inaccurate readings.
One portable unit moves between the house, backyard, and driving range.
Pairs with Home Tee Hero or compatible third-party simulator software.
Right- and left-handed golfers use the same alignment.
| Brand | Garmin |
|---|---|
| Official Product Name | Approach® R10 |
| Manufacturer Part Number | 010-02356-00 |
| Measurement Technology | Radar |
| Metrics | 14 (4 club, 10 ball) |
| Dimensions | 3.5 × 2.8 × 1 in (88.5 × 70.25 × 25 mm) without tripod |
| Weight | 5.22 oz (148 g) without tripod; 7.79 oz (220.8 g) with tripod |
| Water Rating | IPX7 |
| Battery | Internal rechargeable lithium-ion |
| Battery Life | Up to 10 hours |
| Interface | USB (microUSB cable included) |
| Connectivity | Bluetooth® |
| App | Garmin Golf app on a compatible smartphone (required) |
| Third-Party Simulators | Compatible; subscriptions sold separately |
The Approach R10 part number is 010-02356-00.
Yes. Garmin states the device requires a paired compatible smartphone with the Garmin Golf app.
Garmin's minimum is 15 ft long, 8 ft wide, and 8 ft high, with the ball at least 8 ft from the screen or net and the R10 6 to 8 ft behind the ball.
Yes. Garmin states the R10 reads right- and left-handed swings with the same alignment and no settings changes.
Garmin lists Home Tee Hero (with an active Garmin Golf membership) and third-party options including GSPro, E6 Connect, E6 APEX, and Awesome Golf. Third-party subscriptions are sold separately.
No. Garmin states the R10 compensates for some tilt, and the app alerts you on the first swing if the tilt is too great.
Garmin rates battery life at up to 10 hours.
Garmin recommends regulation golf balls for reliable shot detection.
Contact ProSimHQ for help reviewing room dimensions, monitor placement, impact screens and nets, hitting mats, projectors, and simulator software.
| Specification name | Specification Value |
|---|---|
| Age group | All ages |
| Color pattern | Black |
