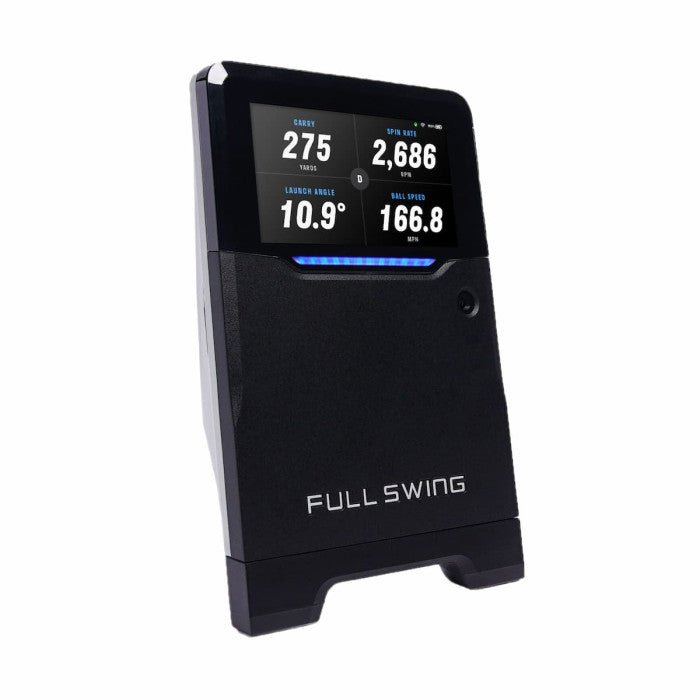

The Full Swing KIT is a portable launch monitor. It combines Full Swing’s patented 24 GHz dual-mode, machine-learning-enhanced radar with a built-in Full HD 1080p camera. It reports 16 club and ball data points, records video of every swing, and shows the metrics you choose on its 5.3-inch full-color OLED display.
It works outdoors on the range and indoors into a screen or net. Full Swing states that all 16 data points are available with no unlock needed, and the free Full Swing app runs on iOS and Android. KIT is compatible with GSPro for PC and E6 CONNECT for iPhone and iPad. Those software packages are sold separately.
KIT’s practical advantage is that radar data, swing video and an on-unit display travel together in one padded case. The on-unit display shows the metrics you pick, and the same unit moves between a home net and the range.
Plan an indoor bay around both of Full Swing’s distances: 8–10 ft of ball flight to the screen or net, and 8–10 ft of space behind the ball for the unit. All 16 data points are included. Full Swing’s premium app plan is what gives access to your full historic data across sessions.
Patented 24 GHz dual-mode radar, enhanced by machine learning.
Full HD 1080p video at 60 fps, recorded for every swing for replay and sharing in the app.
Full Swing uses dedicated processors for radar and media. The specification lists a dual-core A9 processor.
Full Swing states that KIT provides these 16 points of club and ball data with no unlock needed:
Ball speed, launch angle, horizontal angle, spin rate, and spin axis.
Club speed, club path, face angle, face to path, attack angle, and smash factor.
Carry distance, total distance, apex height, side carry distance, and side total distance.
Ultra-bright, Full HD (1920 × 1080) OLED with 16.7 million colors. You choose which metrics it shows.
A cloud-based app for iOS and Android. It tracks your data and video, and data can appear on the KIT display, iPhone, iPad or Apple Watch, or be spoken through headphones.
Full Swing’s premium plan adds access to all your historic data: every data point, from every shot, from every session.
The Full Swing app is included with every KIT, for tracking data and video. For virtual golf, Full Swing lists compatibility with:
Runs on a PC. Sold separately.
Runs on iPhone and iPad. Packages are sold separately.
Full Swing’s own simulation software. It is offered with Full Swing KIT Studio PC packages, and a subscription is required.
8–10 ft of ball flight from the ball to the screen or net.
8–10 ft of space behind the golf ball for the KIT unit.
Place the KIT 10 ft behind the golf ball for the best radar readings and video.
Built-in 8,000 mAh lithium-ion battery. Full Swing quotes about 5 hours of use, depending on conditions.
USB-C charging port, with a 45 W USB-C charger (110–240 V, 50–60 Hz) and a 3 ft (1 m) USB-C cable.
Wi-Fi 802.11a/b/g/n/ac and Bluetooth 5.0 BR/EDR/LE.
| iPhone | iPhone 10 and higher, running iOS 14 or later |
|---|---|
| iPad | iPad 7th generation and higher, iPad Air 3rd generation and higher, and all iPad Pro models, running iOS 14 or later |
| Apple Watch | Apple Watch 3 or higher, running watchOS 7 or later |
| Headphones | Apple AirPods or most Bluetooth headphones |
| Android | Full Swing app available for Android |
| Brand | Full Swing |
|---|---|
| Model | KIT Launch Monitor |
| Tracking | Patented 24 GHz dual-mode, ML-enhanced radar |
| Data Points | 16 club and ball data points |
| Display | 5.3 in ultra-bright Full HD (1920 × 1080) OLED, 16.7 million colors |
| Camera | Full HD 1080p, 60 fps |
| Processor | Dual-core A9 |
| Connectivity | Wi-Fi 802.11a/b/g/n/ac; Bluetooth 5.0 BR/EDR/LE |
| Battery | Built-in lithium-ion, 8,000 mAh; about 5 hours of use depending on conditions |
| Charging | USB-C port; 45 W USB-C charger, 110–240 V, 50–60 Hz; 3 ft (1 m) USB-C cable |
| Unit Dimensions | 10.23 in H × 6.57 in W × 2.32 in D (3.74 in with support leg extended); 260 × 167 × 59 mm (95 mm) |
| Unit Weight | 4.0 lb (1.8 kg) |
| Carry Case | Light-weight, water and impact resistant; 13 in L × 8.11 in W × 3.86 in H (330 × 206 × 98 mm) |
| Unit, Case and Charger Weight | 5.7 lb (2.6 kg) |
| Use | Indoor and outdoor |
Yes. Full Swing states that no unlock is needed for the 16 club and ball data points. Access to your full historic data across sessions is part of Full Swing’s premium app plan.
Yes. Full Swing calls for 8–10 ft of ball flight to the screen or net and 8–10 ft of space behind the ball for the unit.
10 ft behind the golf ball, for the best radar readings and video recording.
Full Swing lists GSPro for PC and E6 CONNECT for iPhone and iPad, both sold separately. Full Swing Golf for KIT software comes with Full Swing KIT Studio PC packages and requires a subscription.
Not for the Full Swing app, which runs on iOS and Android. GSPro requires a PC.
Full Swing quotes about 5 hours of use from the built-in 8,000 mAh battery, depending on conditions. It charges over USB-C.
Yes. Full Swing lists Apple Watch 3 or higher running watchOS 7 or later, and data can also be spoken through AirPods or most Bluetooth headphones.
Contact ProSimHQ for the current Full Swing warranty terms before ordering.
Contact ProSimHQ for help reviewing room depth, hitting mats, nets and screens, and the simulator software you plan to run with the Full Swing KIT.
