The SIG8 Enclosure is part of The Indoor Golf Shop’s Signature (SIG) Series. It combines a SIGPRO Premium impact screen with a color-coded push-pin frame, a black surround, protective foam padding and ball bungees. It is the smallest enclosure in the SIG range, at 8 ft 4 in wide × 8 ft 4 in high × 5 ft deep.
The viewable screen is square, 7 ft 7 in × 7 ft 7 in (10 ft 8 in diagonal). The manufacturer states it is built to withstand golf ball strikes up to 250 mph. Plan the room first: the assembly guide recommends a space at least 10 ft wide and 16 ft long, with a 9 ft ceiling.
The SIG8 suits rooms where a wider enclosure will not fit. The frame, screen, surround and foam padding come together as one kit, and the manufacturer designed the color-coded poles for easy frame assembly.
The square screen is also the main planning point. The manufacturer states that the image fills 80% of this screen, so check projector placement and image size against the 7 ft 7 in square surface before you order.
8 ft 4 in W × 8 ft 4 in H × 5 ft D.
7 ft 7 in W × 7 ft 7 in H, with a 10 ft 8 in diagonal.
110 lb, per the SIG8 assembly guide.
The SIG8 assembly guide recommends a space of at least 10 ft wide × 16 ft long, with a 9 ft ceiling.
The manufacturer notes that some golfers need more than a 9 ft ceiling to swing comfortably. Test your swing in the space before ordering.
The enclosure can go in a space larger than the recommended minimum.
The guide advises moving the frame close to its final location before the screen and surround are added, because they make it heavier.

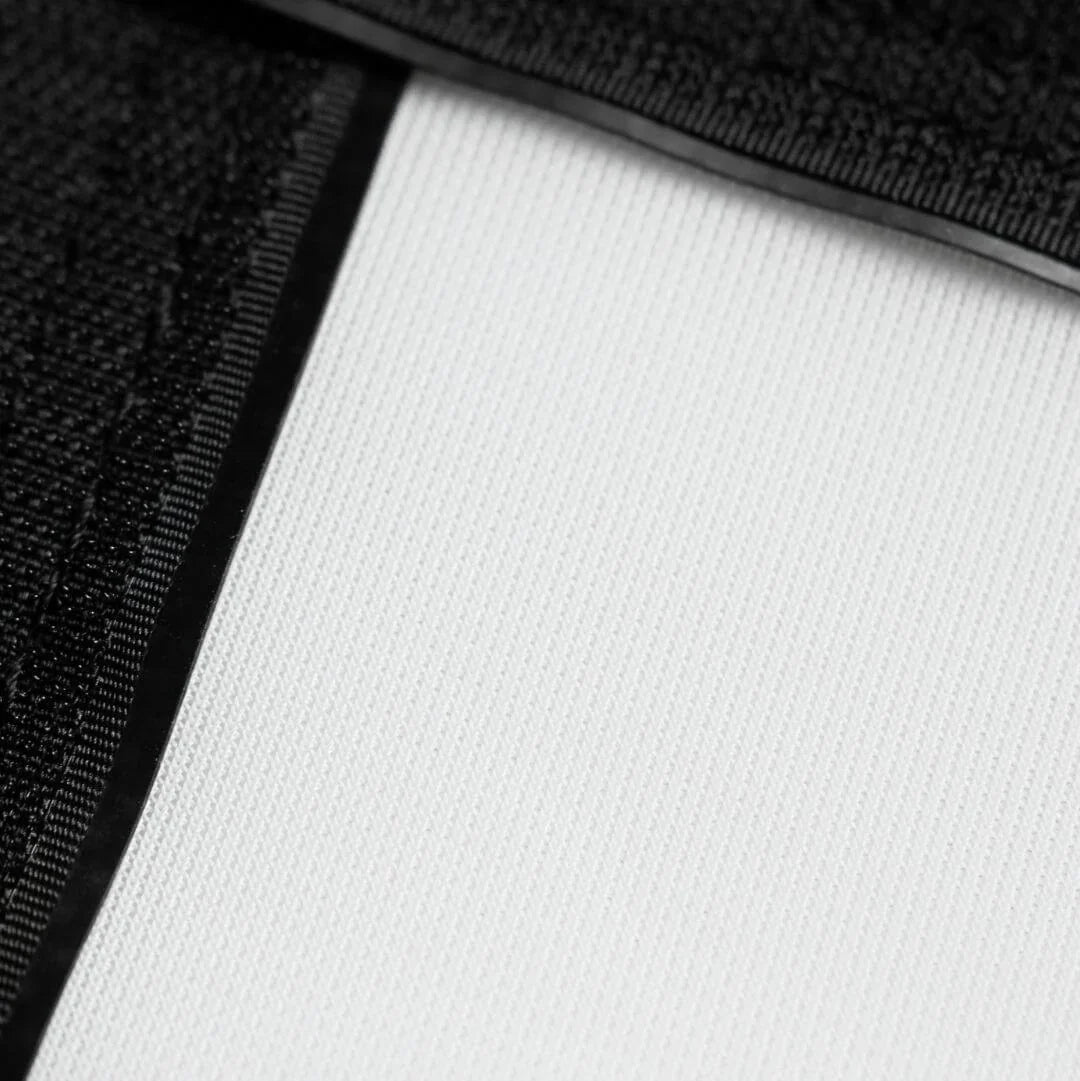

The SIG8 comes with the manufacturer’s SIGPRO Premium impact screen in white. The manufacturer states the screen displays in HD quality and is built to withstand ball strikes up to 250 mph.
Double-stitched black vinyl edges with grommets.
A ball bungee is threaded through each grommet and wrapped around the frame pole.
The guide recommends washing your hands and cleaning the floor before you handle the white screen, to avoid marks.
18 color-coded snap-button poles connect with 2 L-shaped connectors and 6 three-way connectors.
Fits over the frame, fastens around the poles with Velcro flaps, and is secured at the back with ball bungees through its grommets.
Four strips: two long pads along the top and bottom of the screen and two shorter pads on the sides. They protect the poles behind the screen and surround from off-center shots.
The frame goes up first. Poles are sorted by color and stripe pattern, then the surround, impact screen and foam padding go on. The guide calls for a step-stool or ladder and recommends a second person to help.
| Manufacturer | The Indoor Golf Shop (Signature Series) |
|---|---|
| Model | SIG8 Enclosure |
| Impact Screen | SIGPRO Premium, white |
| Enclosure Dimensions | 8 ft 4 in W × 8 ft 4 in H × 5 ft D |
| Viewable Screen | 7 ft 7 in W × 7 ft 7 in H (10 ft 8 in diagonal) |
| Screen Shape | Square (equal width and height) |
| Rated Ball Speed | Up to 250 mph (manufacturer statement) |
| Weight | 110 lb |
| Color | Black surround and frame, white impact screen |
| Frame | Color-coded snap-button poles with L-shaped and three-way connectors |
| Recommended Space | At least 10 ft W × 16 ft L, 9 ft ceiling |
| Side Barrier Netting | Not included (separate add-on) |
| Assembly | Step-stool or ladder needed; second person recommended |
The full enclosure measures 8 ft 4 in wide × 8 ft 4 in high × 5 ft deep. The viewable screen is 7 ft 7 in × 7 ft 7 in, with a 10 ft 8 in diagonal.
The assembly guide recommends at least 10 ft wide × 16 ft long with a 9 ft ceiling. Some golfers need a higher ceiling to swing comfortably.
No. The manufacturer offers side barrier netting as a separate add-on.
The screen is square, and the manufacturer states the image fills 80% of it. Contact ProSimHQ to check projector placement and image size for your room.
The manufacturer states the SIG8 screen is built to withstand golf ball strikes up to 250 mph.
A step-stool or ladder. The manufacturer recommends a second person to help, especially when fitting the surround and screen.
110 lb, per the SIG8 assembly guide.
Warranty terms are not published on the manufacturer’s SIG8 product page. Contact ProSimHQ for current terms before ordering.
Contact ProSimHQ for help checking room dimensions, ceiling height, launch monitor placement, projectors and hitting mats for a SIG8 setup.
| Specification name | Specification Value |
|---|---|
| Age group | Adults, Universal, All ages |
| Color pattern | Black, White, Gray |
