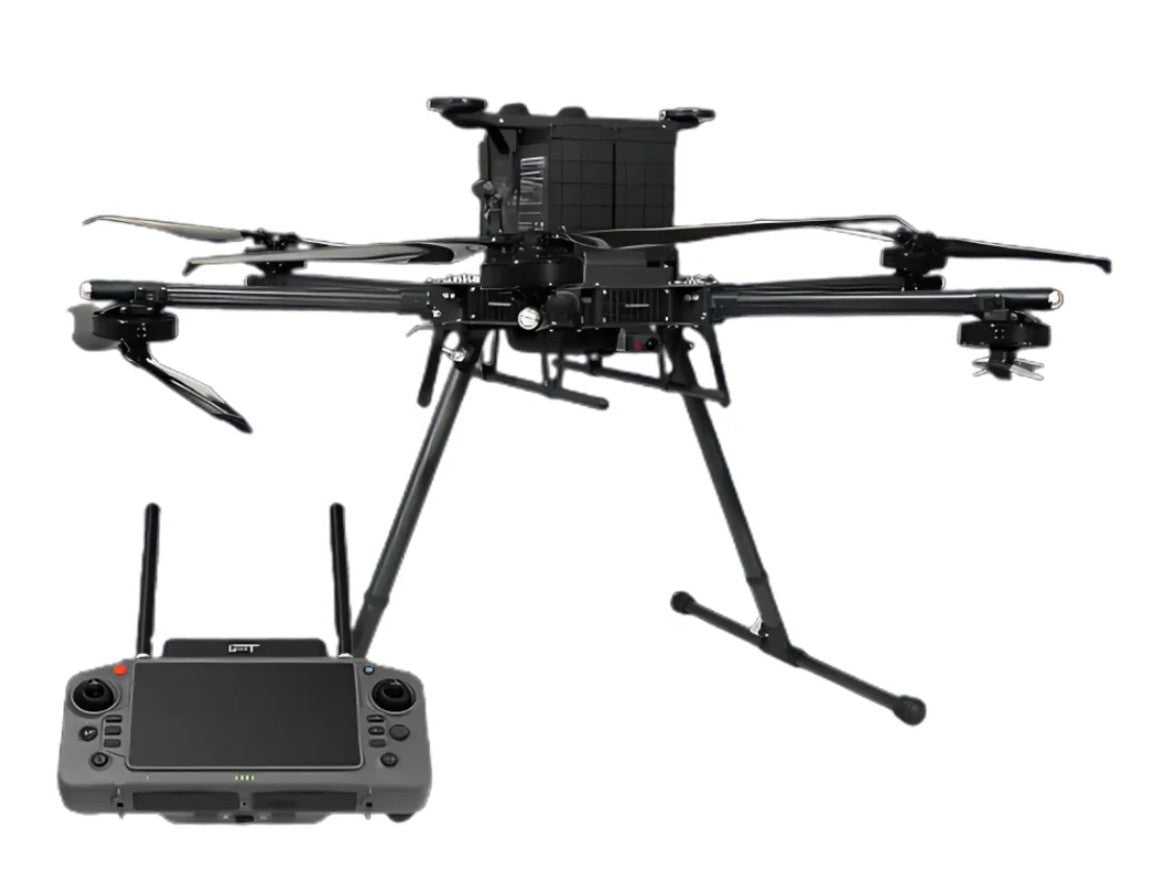

The Inspired Flight IF1200A Hexacopter with GS-ONE Ground Control Station is a heavy-lift enterprise drone platform engineered for industrial inspection, mapping, utility operations, emergency response, and government-focused aerial missions. Featuring a compact foldable hexacopter design, modular payload compatibility, and NDAA-aligned architecture, the IF1200A is designed for organizations requiring high payload capacity and secure operational workflows.
Heavy-Lift Enterprise Performance
- Payload Capacity: Supports payloads up to 8.7 kg (19.1 lbs).
- Maximum Flight Time: Up to 43 minutes depending on payload configuration and operating conditions.
- Maximum Flight Speed: Up to 25 m/s (56 mph).
- Wind Resistance: Designed for operation in winds up to 12 m/s with higher gust tolerance.
- Hexacopter Redundancy: Six-motor architecture designed to support operational stability and redundancy.
Secure Enterprise Platform
- Blue UAS Aligned: Designed for supported government and enterprise operational environments.
- NDAA Compliant: Platform architecture aligned for organizations requiring NDAA-focused sourcing considerations.
- Made & Supported in the USA: Domestic support and operational service infrastructure.
- GS-ONE Ground Control Station: Ruggedized control platform designed for mission management and flight operations.
Flight Systems & Navigation
- Flight Controller: CubePilot Cube Blue H7 flight controller with triple redundant IMUs.
- GNSS System: Dual CubePilot Here3 M8P positioning modules.
- Payload Interface: IF1200A Universal Payload Interface for supported payload integrations.
- Operating Software: ArduPilot-based flight software platform.
- FPV Camera: Integrated FPV camera designed to support operational awareness during flight.
Flight Modes & Operational Functions
- Position Hold: GPS-assisted hover stabilization and position maintenance.
- Loiter Mode: Precision hovering with controlled manual movement.
- Waypoint Missions: Supports automated route and waypoint flight operations.
- Return to Launch: Automated return-to-home functionality.
- Altitude Hold: Maintains altitude stabilization during supported operating conditions.
Physical Specifications
| Diagonal Size | 1,025 mm |
| Folded Dimensions | 47.5 × 49.5 × 47 cm |
| Flight Ready Dimensions | 165.5 × 154 × 76.5 cm |
| Aircraft Weight (without batteries) | 7.8 kg (17.2 lbs) |
| Weight with Batteries | 16.3 kg (35.9 lbs) |
| Maximum Takeoff Weight | 25 kg (55 lbs) |
Included Components
- 1 × Inspired Flight IF1200A Hexacopter
- 1 × GS-ONE Ground Control Station
Important Product Information
| Model | Inspired Flight IF1200A |
| MPN | 104604 |
| Compliance | Blue UAS and NDAA aligned platform. |
| Payload Support | Payloads, cameras, LiDAR systems, and accessories sold separately unless otherwise specified. |
| Commercial Use | Commercial drone operation may require FAA registration and compliance with applicable regulations. |
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
