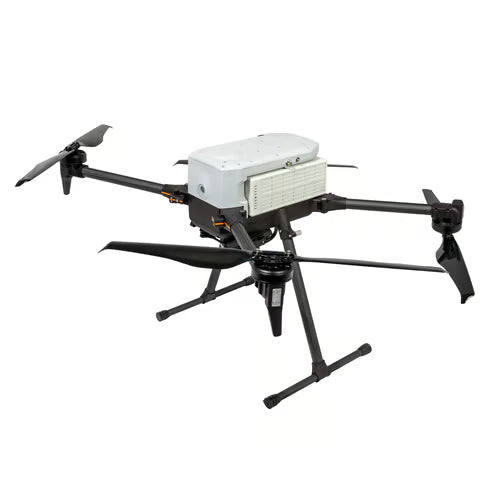

The Inspired Flight IF800 Tomcat + GS-ONE Bundle is an NDAA-compliant, Blue UAS-approved medium-lift platform engineered for professional aerial data collection in regulated environments. This American-made system features the IF800 Tomcat aircraft, capable of a 54-minute flight time and a 6.6 lb maximum payload. Paired with the ruggedized GS-ONE Ground Control Station, the bundle provides a secure, long-range command-and-control solution for government, public safety, and industrial operators.
Enterprise Compliance & Security Architecture
- Blue UAS Approved: Fully cleared for Department of Defense (DoD) procurement and federal agency operations.
- NDAA Compliant: Built without restricted critical components, meeting all requirements for domestic and secure infrastructure missions.
- AES-256 Encrypted Data Link: Features secure, encrypted communication between the IF800 and GS-ONE station to protect sensitive flight data.
- Made in the USA: Designed, manufactured, and supported in the United States for maximum supply chain security.
IF800 Tomcat Performance Specifications
- Extended Flight Endurance: Achieves up to 54 minutes of flight time (unloaded) for long-duration mapping and surveillance.
- Heavy-Lift Payload Versatility: A 6.6 lb (3 kg) payload capacity allows for the integration of high-resolution mapping cameras, EO/IR sensors, or LiDAR units.
- Flight Capability: Reaches a maximum speed of 49 mph and maintains stability in sustained wind speeds up to 23 knots.
GS-ONE Ground Control Station Performance
- High-Brightness Display: 7-inch touchscreen with 1200-nit brightness for clear telemetry visibility in direct sunlight.
- Hot-Swappable Battery System: Provides up to 5 hours of continuous operation with the ability to swap batteries without powering down.
- IP55-Rated Durability: Ruggedized construction designed to withstand dust and low-pressure water jets in field environments.
- Long-Range Connectivity: Features a secure transmission range of up to 6 miles (9.6 km) for extended line-of-sight operations.
Technical Data Table
| Compliance | NDAA, Blue UAS |
| Max Payload | 6.6 lbs (3.0 kg) |
| Transmission Range | Up to 6 Miles |
| Aircraft Speed | 49 mph |
Bundle Contents & Mandatory Exclusions
Included in Bundle: IF800 Tomcat Aircraft, GS-ONE Ground Control Station, Smart Flight Batteries, and a Rugged Transport Case.
Important: This is a "Drone & Controller Only" bundle. Payload sensors (Cameras, LiDAR, Thermal), gimbals, and mapping software are NOT included and must be purchased separately.
| Specification name | Specification Value |
|---|---|
| Camera features | Remote control |
| Camera HD type | 4K |
| Color pattern | Black, Gray |
| Connectivity technology | Wireless |
| Material | Carbon, Plastic |
| Power source | Battery-powered |
