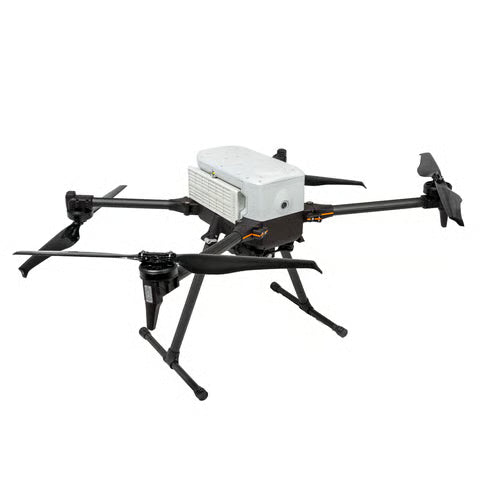

The Inspired Flight IF800 Quadcopter with Blue Herelink GCS is a professional enterprise drone platform designed for industrial inspection, mapping, public safety, infrastructure monitoring, and secure government operations. Featuring a foldable quadcopter airframe, modular payload support, and Blue UAS compliance, the IF800 is engineered for organizations requiring secure and adaptable aerial operations in demanding field environments.
Enterprise Flight Performance
- Flight Endurance: Up to 54 minutes of flight time depending on payload configuration and operating conditions.
- Payload Capacity: Supports payloads up to 3.0 kg (6.6 lbs).
- Maximum Flight Speed: Up to 22 m/s (49 mph).
- Wind Resistance: Rated for operation in winds up to 10 m/s with higher gust tolerance.
- Battery Hot Swap Support: Designed to support battery replacement workflows that minimize operational downtime.
Secure & Government-Oriented Platform
- NDAA Compliant: Designed for organizations requiring NDAA-aligned equipment sourcing.
- Blue UAS Approved: Listed within the Blue UAS ecosystem for supported government and enterprise applications.
- Encrypted Communications: Supports AES-128 encrypted communications for operational data transmission.
- Blue Herelink Ground Control Station: Integrated control platform with touchscreen mission management functionality.
Flight Systems & Navigation
- Flight Controller: CubePilot Cube Blue H7 flight controller with triple redundant IMU architecture.
- GNSS System: Dual CubePilot Here4 Blue positioning modules.
- Ground Sensor: Integrated LightWare SF000/B downward sensing system.
- Payload Interface: IF800 Universal Payload Interface for compatible payload integration.
- Operating Software: ArduPilot-based flight operation platform.
Flight Modes & Operation
- Position Hold: Stabilized GPS-assisted hover positioning.
- Loiter Mode: Precision position holding with manual flight adjustment capability.
- Waypoint Missions: Supports automated waypoint-based flight operations.
- Return to Launch: Automated return-to-home functionality.
- Altitude Hold: Maintains altitude stabilization during operation.
Physical Specifications
| Diagonal Size | 905 mm |
| Folded Dimensions | 36 × 44 × 20 cm |
| Flight Ready Dimensions | 132 × 114 × 52 cm |
| Aircraft Weight (without batteries) | 4.2 kg (9.2 lbs) |
| Weight with Batteries | 8.5 kg (18.7 lbs) |
| Maximum Takeoff Weight | 11.5 kg (25.3 lbs) |
| Operating Temperature | -20°C to 45°C |
Included Components
- 1 × Inspired Flight IF800 Quadcopter
- 1 × Blue Herelink Ground Control Station
- 1 × Rugged Transport Case
- 1 × Charger Set
- 2 × Flight Batteries
Important Product Information
| Model | Inspired Flight IF800 |
| MPN | 103132 |
| Compliance | Blue UAS and NDAA aligned platform. |
| Payload Compatibility | Payloads and integrations may vary depending on mission requirements and supported configurations. |
| Commercial Use | Commercial drone operation may require FAA registration and compliance with applicable regulations. |
| Specification name | Specification Value |
|---|---|
| Camera features | Interchangeable lens, Touchscreen |
| Camera HD type | 4K |
| Camera sensor type | CMOS |
| Color pattern | Black, Gray, Blue |
| Connectivity technology | Wireless |
| Material | Metal, Plastic |
| Power source | Battery-powered |
