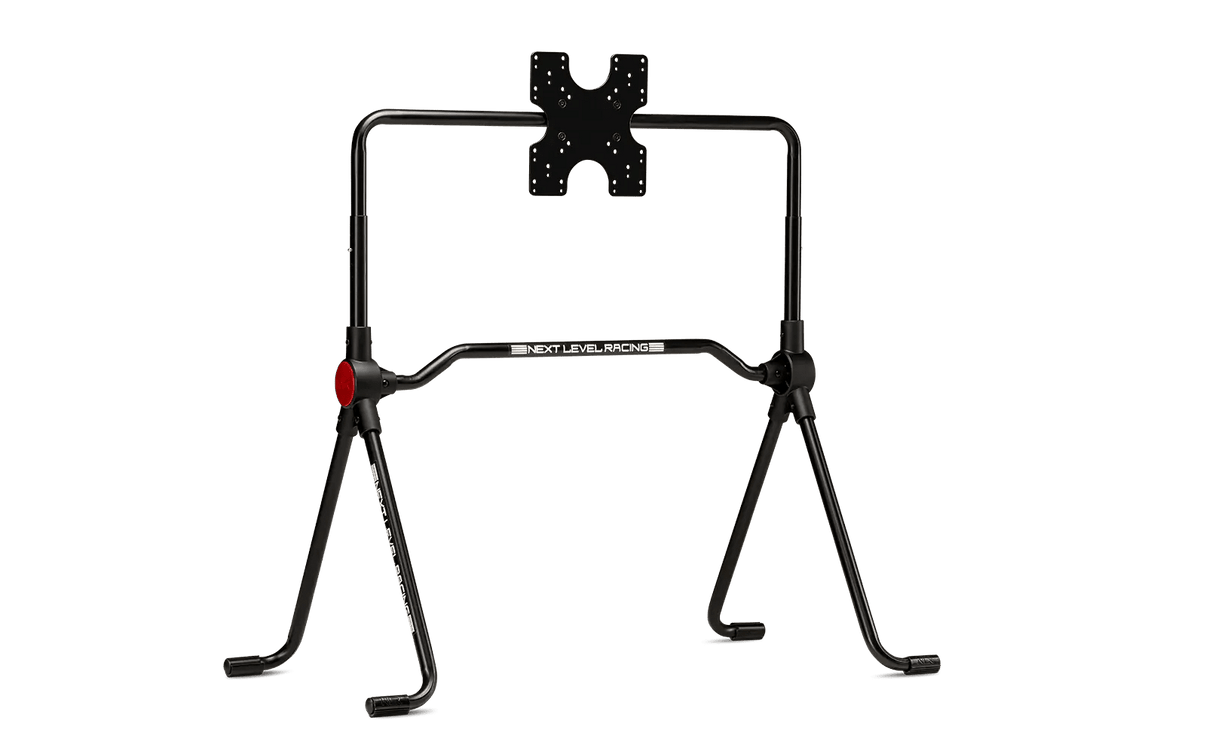

The Next Level Racing® Lite Free Standing Monitor Stand is a compact and lightweight display solution for racing, flight, and other simulation setups. It supports one compatible monitor or television up to 55 inches and 44 lb, with height and tilt adjustment for improved eye-line positioning across GT, Formula, wheel-stand, and desk-based configurations.
A freestanding monitor stand allows the screen to be moved independently from the cockpit. This makes it easier to position the display close to the wheel or yoke while reducing vibration transferred from the simulator frame.
The Lite stand is best for one lightweight-to-midweight screen up to 55 inches. Customers using heavier 49- to 65-inch ultrawides or televisions should compare NLR’s heavier Round Tube or Elite freestanding monitor stands.
The stand supports one compatible monitor or television up to 55 inches, provided the display does not exceed the 20 kg / 44 lb weight limit.
Supports compatible flat and curved displays within the size and weight limits.
Supports compatible televisions when the VESA pattern and total weight fit.
Positions a primary display independently from a flight stand or cockpit.
The included mounting plate and extension brackets support common VESA patterns ranging from 75 × 75 through 400 × 400 mm.
Supports common 75 × 75 and 100 × 100 mm arrangements.
Adapter brackets support compatible patterns up to 400 × 400 mm.
Adjustable uprights and mounting hardware allow the display height and viewing angle to be refined for the driver or pilot.
Raise or lower the screen relative to the user’s seated position.
Angle the display to improve visibility and reduce reflections.
Move the entire stand closer to or farther from the cockpit.
The frame combines carbon-steel tubing with glass-filled nylon components to balance structural stability, transportability, and low product weight.
Provides the primary base and upright support structure.
Reduce weight while maintaining support at selected frame connections.
The base provides approximately 790 mm / 31.1 inches of internal clearance, allowing the monitor stand to straddle many compact cockpits and wheel stands.
The Lite stand is designed for the Next Level Racing Lite Series and can also be used with many other compact cockpits and wheel stands when width and display requirements are satisfied.
Compact foldable cockpits designed for multipurpose rooms.
Current compact GT-style cockpit options.
Compact foldable wheel-stand configuration.
Heavier foldable wheel stand with broader hardware support.
May be used as an independent display solution when spacing allows.
May fit when external width and accessory clearance remain below the stand opening.
Keeps the display separate from wheel, pedal, and haptic cockpit movement.
Allows the display to be positioned close to the wheelbase or dashboard.
The cockpit can be adjusted without rebuilding a chassis-mounted display system.
Supports one compatible monitor or television up to 55 inches.
Uses less floor space than heavier freestanding monitor structures.
Allows the screen to remain in place while the cockpit is stored.
Adds dedicated eye-level display support without a full cockpit.
Provides an independent primary display for compatible flight setups.
Offers height and tilt adjustment in a lightweight freestanding design.
| Brand | Next Level Racing® |
|---|---|
| Official Product Name | Lite Free Standing Monitor Stand |
| Manufacturer SKU / MPN | NLR-A020 |
| Display Quantity | 1 |
| Maximum Display Size | Up to 55 in |
| Maximum Display Weight | 20 kg / 44 lb |
| VESA Compatibility | 75 × 75 through 400 × 400 mm |
| Height Range | Approximately 103–116 cm / 40.6–45.7 in |
| Internal Base Clearance | 790 mm / 31.1 in |
| Primary Materials | Carbon-steel tubing and glass-filled nylon components |
| Product Weight | 5.66 kg / 12.5 lb |
| Package Dimensions | Approximately 53.1 × 12.9 × 5.3 in |
| Shipping Weight | Approximately 18.6 lb |
| Adjustment | Display height and tilt |
| Intended Use | Racing, flight, and general simulation display support |
The manufacturer SKU is NLR-A020.
It supports one compatible display up to 55 inches and 44 lb.
VESA patterns from 75 × 75 through 400 × 400 mm are supported.
Possibly, when the display is within the size, weight, VESA, and rear-clearance requirements.
Yes, when the cockpit width, accessory placement, and screen position fit within the stand’s physical clearance.
The stand provides approximately 31.1 inches of clearance between the base supports.
The stand weighs approximately 12.5 lb.
Use approximately 18.6 lb unless your current distributor record lists a different boxed weight.
Contact ProSimHQ for help reviewing screen weight, VESA pattern, cockpit width, eye-line position, and display-clearance requirements.
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
| Mount/Stand features | Adjustable angle, Adjustable dimensions, Easy to install, Portable |
