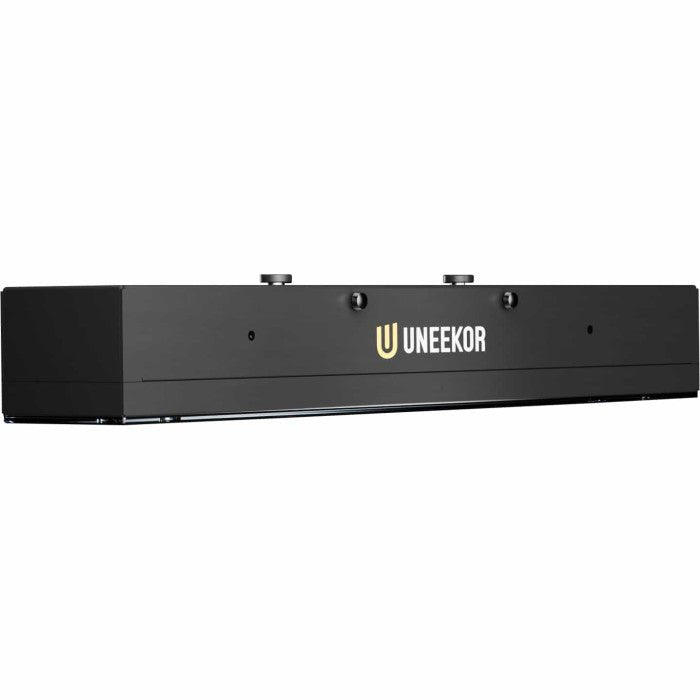

The Uneekor EYE XR is a ceiling-mounted overhead launch monitor that sits behind the golfer, keeping the hitting area open. Two high-speed photometric infrared cameras capture 19 ball and club data points, and Uneekor’s Club AI reports club data without stickers on the club face.
A single Power over Ethernet connection carries power and data, and the unit runs with Uneekor’s VIEW software on a Windows PC. Correct placement matters: Uneekor specifies the mounting distance behind the ball and a 9–10 ft mounting height, so the room should be planned before the unit is ordered.
The EYE XR’s strength is its installation: nothing on the floor, nothing directly above the ball, and one cable for power and data. For shared bays and households with several golfers, removing club stickers from the routine is a practical gain.
The tradeoff is the club data. Uneekor lists four club parameters for the EYE XR and notes that face angle is calculated rather than directly measured. Golfers who work on attack angle, face-to-path, or strike location should compare it with the EYE XO or EYE XO2.
The EYE XR is an overhead launch monitor that mounts on the ceiling behind the golfer rather than above or beside the ball. Uneekor describes it as rear-mounted on the ceiling, which keeps the unit out of the hitting zone and away from the ball’s path.
Uneekor’s user guide specifies mounting the unit 3 ft 6 in (1 m) behind the center of the hitting zone, measured to the center of the launch monitor, not the bracket.
The guide specifies a ceiling height of 9–10 ft (2.7–3 m) for the unit; Uneekor’s comparison chart lists 10 ft as the optimal mounted height.
Uneekor specifies a 9–10 ft mounting height and a 9 ft minimum ceiling; above 10 ft a drop mount is required. The drop mount is not part of the listed box contents.
Uneekor recommends a minimum room size of 13 ft wide × 16 ft deep × 10 ft high for the EYE XR, to provide comfortable swing clearance and proper sensor coverage from the rear-mounted unit.
Uneekor’s general setup guidance calls for at least 13 ft wall to wall for full driver swings, and at least 15 ft for golfers 6 ft or taller.
Uneekor recommends at least 12 ft from the tee area to the impact screen for safety, with 10 ft as a minimum where space is limited.
Uneekor specifies a 9–10 ft mounting height and a 9 ft minimum ceiling; above 10 ft a drop mount is required.
Club data on the EYE XR comes from Uneekor’s Club AI tracking, so no reflective stickers are applied to the club face. Uneekor positions this as faster setup and uninterrupted sessions.
Uneekor lists four club parameters for the EYE XR: club speed, club path, smash factor, and face angle.
Uneekor’s user guide states that EYE XR face angle is calculated with a proprietary formula from available ball and club data, providing an estimate without club stickers.
Uneekor’s comparison chart marks impact point, attack angle, face to path, dynamic loft, and club lie angle as not available on the EYE XR.
Uneekor specifies 19 ball and club data points for the EYE XR: 15 ball parameters and 4 club parameters. Ball and club data are part of the Player membership that Uneekor includes with every launch monitor.
Ball speed, launch angle, side angle, back spin, side spin, and spin axis.
Ball flight type, carry distance, run, total distance, and side total.
Apex, distance to apex, flight time, and angle of descent.
Driver and iron: 11–223 mph. Putter: 0.44–67 mph, per Uneekor’s technical specifications.
Back spin up to 12,000 rpm. Launch angle −10° to 50° for driver and 0.1° to 80° for irons.
The EYE XR uses two high-speed photometric infrared cameras. Uneekor’s camera technologies handle ball reading and impact video.
Reads the dimples of the golf ball through impact, so no marked balls are required. Uneekor’s guide describes it as working with any white golf ball.
Captures high-speed impact video of club and ball through contact for visual feedback on strike and delivery.
The EYE XR is powered over Ethernet. Uneekor’s guide routes the included 45 ft (15 m) CAT6 LAN cable from the unit to the included PoE adapter, which is then plugged into a power outlet and connected to the PC.
1 Gbps LAN, CAT6, RJ-45 connector. Uneekor recommends CAT6 UTP cable under 30 m.
Uneekor instructs connecting the LAN cable directly to the PC’s Ethernet port, not through a USB hub or adapter.
Uneekor’s recommended PC specification lists two dedicated Ethernet ports: one for the launch monitor and one for optional hard-wired internet.
Setup runs through Uneekor Launcher, where the license is activated, the unit is calibrated, and software is installed. VIEW is the standard software for the EYE XR.
Included with every Uneekor launch monitor: ball and club data, a virtual driving range, Power U reports (100), and a single profile.
A Pro, Champion, or Ultimate membership is needed for third-party software. Uneekor lists third-party compatibility for the EYE XR; supported simulation titles are set by Uneekor and sold separately.
Included in the Champion and Ultimate memberships or available on its own. Uneekor states AI Trainer requires Swing Optix® cameras, which are sold separately.
A Windows PC is required. Uneekor publishes the following recommended specification for the EYE XR and states that it is mandatory for data-intensive products such as AI Trainer.
| Operating System | Windows 11 Home or Pro (latest version) |
|---|---|
| Processor | Intel Core i7 (12th Gen or later) or AMD Ryzen 7 (5000 Series or later) |
| RAM | 32 GB or more |
| Graphics Card | NVIDIA RTX 4070 Ti or equivalent |
| Dedicated Ethernet Ports | 2 (one for the launch monitor, one for optional hard-wired internet) |
| Internet Download Speed | 25 Mbps or higher |
Rooms that meet the 13 × 16 × 10 ft recommendation and can place the unit 3 ft 6 in behind the hitting zone.
Golfers who want club speed, path, smash factor, and face angle without applying club stickers.
Households where several golfers use one bay and club-sticker upkeep would slow sessions down.
Uneekor positions the single PoE connection for home and facility spaces; confirm commercial requirements with ProSimHQ.
Buyers planning to add Swing Optix® cameras and AI Trainer for combined data, video, and feedback.
Setups where nothing should sit on the floor next to the ball.
All three are Uneekor overhead launch monitors. The main differences are mounting position, hitting area, and the club data each reports.
| Feature | EYE XR | EYE XO | EYE XO2 |
|---|---|---|---|
| Mounting Type | Rear overhead | Front overhead | Front overhead |
| Hitting Area | 14 in L × 12 in W | 16 in L × 12 in W | 28 in L × 21 in W |
| Club Stickers | Not needed | Optional | Optional |
| Club Data Listed | Club speed, path, smash factor, face angle | Adds impact point, attack angle, face to path, dynamic loft, lie | Adds impact point, attack angle, face to path, dynamic loft, lie |
| Ball Data Listed | 15 parameters | 15 parameters | 15 parameters |
| Optimal Mounted Height | 10 ft | 10 ft | 10 ft |
| Brand | Uneekor |
|---|---|
| Model | EYE XR |
| Type | Overhead launch monitor, ceiling mounted (rear) |
| Sensor Technology | 2 high-speed photometric infrared cameras |
| Data Points | 19 (15 ball, 4 club) |
| Club Tracking | Club AI; no club stickers required |
| Ball Requirement | No marked balls required |
| Hitting Zone | Approximately 14 in L × 12 in W |
| Unit Dimensions | 3.1 in H × 22.4 in W × 3.9 in D (78.5 × 568.9 × 99.1 mm) |
| Unit Weight | 5.8 lb / 2.63 kg |
| Bracket Weight | 2.3 lb / 1.04 kg |
| Mounting Position | 3 ft 6 in (1 m) behind the center of the hitting zone |
| Mounting Height | 9–10 ft (2.7–3 m); 10 ft listed as optimal |
| Recommended Minimum Room | 13 ft W × 16 ft D × 10 ft H |
| Power | Power over Ethernet via included PoE adapter; 100–240V AC, 50–60 Hz grounded outlet |
| Network | 1 Gbps LAN, CAT6, RJ-45 |
| PC Required | Yes, Windows |
| Third-Party Compatibility | Yes, with Pro membership or higher |
| Swing Optix® Compatible | Yes (cameras sold separately) |
| Trouble Mat Compatible | No |
| Environment | Indoor use only |
| Color | Black |
| Warranty | Uneekor manufacturer warranty; terms apply |
It is mounted on the ceiling behind the golfer. Uneekor specifies 3 ft 6 in (1 m) behind the center of the hitting zone at a height of 9–10 ft (2.7–3 m).
Uneekor states a ceiling drop mount is needed to bring the unit within the 9–10 ft range. The drop mount is not included.
A minimum of 13 ft wide × 16 ft deep × 10 ft high.
No. Club data comes from Uneekor’s Club AI tracking without stickers.
Club speed, club path, smash factor, and face angle. Uneekor notes face angle is a calculated estimate. Impact point, attack angle, face to path, dynamic loft, and lie angle are not listed for the EYE XR.
Yes. Uneekor recommends Windows 11, an Intel Core i7 (12th Gen or later) or AMD Ryzen 7 (5000 Series or later), 32 GB RAM, an NVIDIA RTX 4070 Ti or equivalent, and two dedicated Ethernet ports.
Through Power over Ethernet. The included PoE adapter supplies power and data over the included 45 ft CAT6 cable.
Uneekor lists third-party compatibility for the EYE XR. It requires a Pro, Champion, or Ultimate membership, and the third-party software is purchased separately.
No. Swing Optix® cameras are sold separately and are required for AI Trainer.
Uneekor manufacturer warranty terms apply. Coverage, conditions and exclusions are set out in Uneekor’s warranty policy.
Contact ProSimHQ for help reviewing room dimensions, mounting height and position, PC specifications, screens, enclosures, projectors, and Uneekor software options.
| Specification name | Specification Value |
|---|---|
| Age group | All ages |
| Color pattern | Black |
