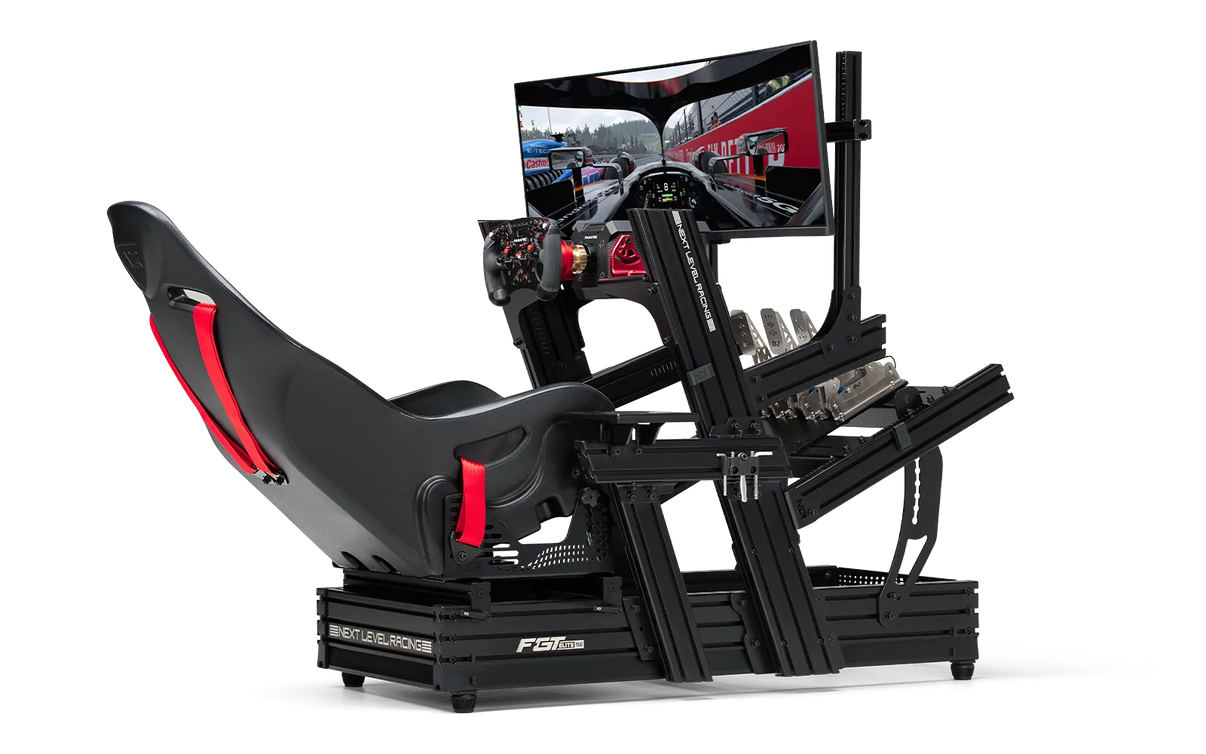

The Next Level Racing® F-GT Elite 160 – Front & Side Mount Edition is a structural 160mm aluminum extrusion cockpit engineered for high-torque Direct Drive wheelbases and professional simulation environments.
Utilizing a custom 160mm x 40mm base profile and premium black anodized finish, this chassis supports Formula, GT, Hybrid, Truck, and Tank driving ergonomics. This edition features specialized Front & Side Mount Brackets, providing a direct-mount interface for compatible wheelbases to ensure mechanical rigidity under aggressive load.
Technical Features
- 160mm Profile Construction: Custom-tooled aluminum base profile for increased torsional rigidity.
- Front & Side Mounting: Includes brackets for wheelbases requiring front or side-mount installation points.
- Multi-Position Adjustability: Frame geometry facilitates Formula, GT, Hybrid, Truck, and Tank positions.
- Industrial Materials: Post-anodized aluminum and powder-coated carbon steel structural plates.
- Motion Ecosystem Ready: Integrated support for NLR Motion Platform V3 and Motion Plus.
- Laser-Etched Calibration: Precision alignment guides for repeatable component positioning.
Front & Side Mount Integration
This edition replaces the standard wheel plate with high-strength brackets for wheelbases that utilize lateral or forward mounting patterns.
- Optimized for Direct Drive wheelbases that require front or side-bolt interfaces.
- Maintains the structural integrity of the 160mm chassis while lowering the center of gravity of the motor.
- Increases legroom and adjustment range compared to top-mount wheel decks.
Note: Verify your wheelbase mounting style before installation. For bottom-mount wheelbases, the Wheel Plate Edition is required.
Structural Build Quality
The F-GT Elite 160 is engineered to handle industrial-grade forces without mechanical deflection.
- Pedal Deck Rigidity: Multi-fold carbon steel design with a strength equivalent to 18.44mm steel.
- Connection Points: Precision-machined holes and custom NLR hardware for increased joint stability.
- Seat Slider System: Engineered to reduce longitudinal flex commonly found in standard seat rails.
Motion Compatibility
The chassis is designed for direct integration with active motion hardware:
- Motion Platform V3: Direct-mount brackets included in the cockpit kit.
- Motion Plus Platform: Structural compatibility to attach up to two units.
- Traction Plus: Requires the Elite Motion Adaptor Upgrade Kit for proper frame spacing.
Package Contents
- Premium Black Anodized Aluminum Extrusion frame
- Side & Front Mount Brackets (NLR-E026 Specific)
- NLR Seat Brackets and Motion Platform V3 mounting hardware
- Height-adjustable, shock-absorbing feet
- Shifter and handbrake plate + ButtKicker® mounting pole
- Toolkit, spirit level, and cable management clips
- Extra hardware for peripheral mounting
*Seat not included. Compatible with NLR ES1, ERS1, and ERS2 seats.
Specifications
- Chassis Material: 40/40, 40/80, 40/120, 40/160 Aluminum Extrusion
- Max Weight Capacity: 150 kg / 330 lbs
- Product Dimensions: 136 × 84.2 × 94.2 cm / 53.5 × 33 × 37.1 in
- Product Weight: 60.1 kg / 132.5 lbs
- Boxed Weight: 66.6 kg / 146.8 lbs
- MPN: NLR-E026
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
