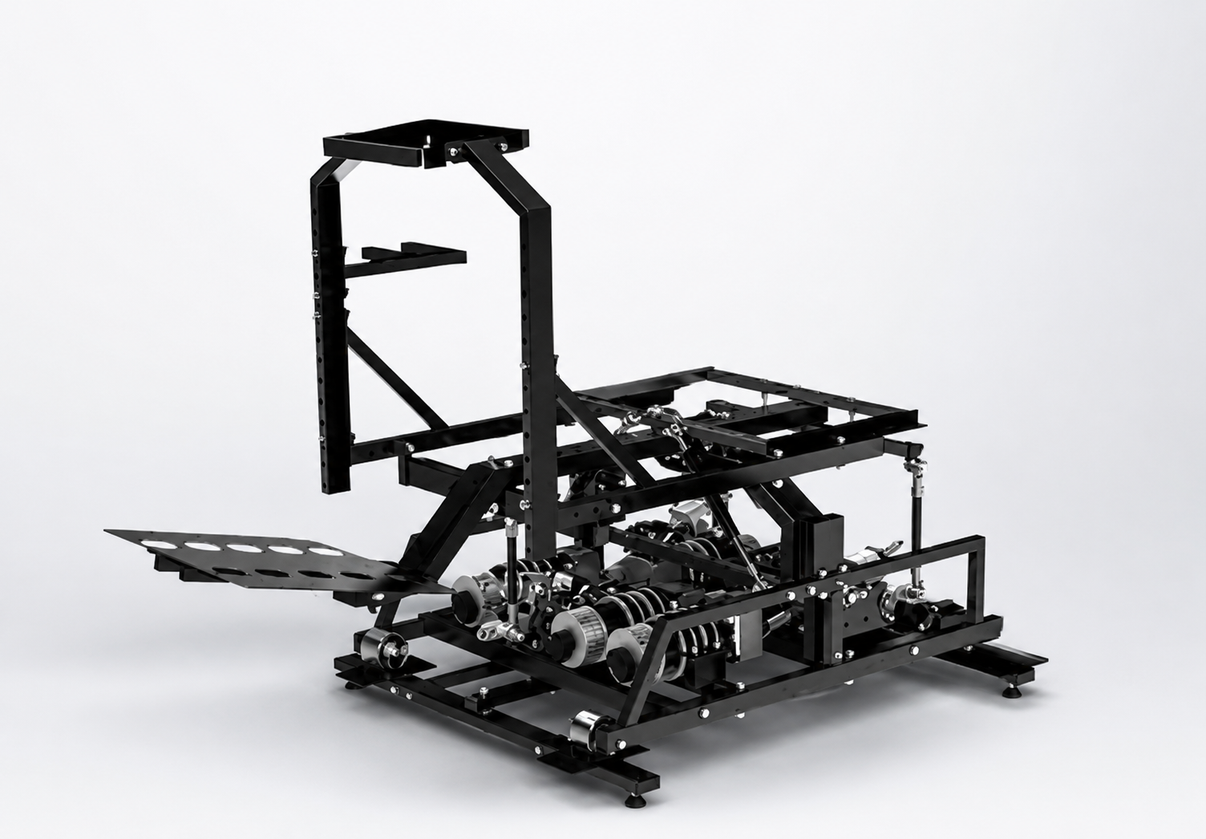

The DOF Reality PRO 4 Universal Motion Simulator Platform is a commercial-grade 4DOF motion system engineered for advanced racing, flight, and helicopter simulation environments. Designed as a full-platform motion solution, the PRO 4 combines Pitch, Roll, Yaw/Rear Traction Loss, and Heave movement to deliver highly immersive physical feedback across multiple simulation styles.
Unlike seat-only motion systems, the PRO 4 moves the entire cockpit assembly together—including the seat, steering wheel, pedals, flight controls, and mounted accessories—helping maintain consistent body positioning and synchronized force feedback throughout gameplay.
4 Degrees of Freedom Full-Platform Motion
- Pitch & Roll: Simulates acceleration, braking forces, banking, turbulence, and elevation changes.
- Yaw / Rear Traction Movement: Adds directional rotation and rear traction loss effects commonly experienced in racing and coordinated flight maneuvers.
- Heave Motion: Introduces vertical chassis movement for road texture, curbing, turbulence, hard landings, and suspension feedback.
- Unified Cockpit Movement: The entire simulator rig moves together as a single platform for more natural motion synchronization.
Professional Simulation Engineering
- Commercial-Grade Construction: Built using reinforced metal profiles engineered for demanding home and commercial simulator environments.
- Universal Simulation Compatibility: Supports racing, flight, and helicopter simulation configurations.
- High-Speed Motion Response: Capable of delivering fast directional movement and dynamic telemetry-based motion transitions.
- Designed for Extended Use: Engineered for long-session operation with durable integrated drive systems and reinforced mechanical components.
Telemetry Software & Motion Integration
- Sim Racing Studio License Included: Converts real-time simulator telemetry into physical platform movement.
- Dynamic Motion Feedback: Reproduces suspension response, engine vibration, directional shifts, runway texture, curb strikes, and turbulence effects.
- Adjustable Motion Profiles: Fine-tune motion intensity, smoothing, and responsiveness based on vehicle type or user preference.
- Broad Software Support: Compatible with many popular racing and flight simulation titles.
Technical Performance Specifications
| Degrees of Freedom | 4DOF (Pitch + Roll + Yaw + Heave) |
| Range of Motion | 20° |
| Max Speed | 75 cm/s (105°/s) |
| Torque | 28 Nm |
| Acceleration | 0.75G T / 0.5G L |
| Power Consumption | 750W Peak |
| User Weight Capacity | 440 lbs (200 kg) |
| Platform Footprint | 3×5 ft | 2 ft Height |
| Construction Material | Commercial Grade Metal Profiles |
| Warranty | 1-Year Manufacturer Warranty |
What’s Included & Required Separately
Included with Platform:
- DOF Reality PRO 4 Universal Motion Platform
- Integrated Motion Drive System
- USB Motion Control Unit (100–240V)
- Sim Racing Studio Software License
- Mounting Hardware & Assembly Tools
- Required Cables & Power Components
Important: This listing is for the motion platform only. Racing seats, steering wheels, pedals, flight controls, VR headsets, monitors, and simulation software are sold separately unless otherwise specified.
