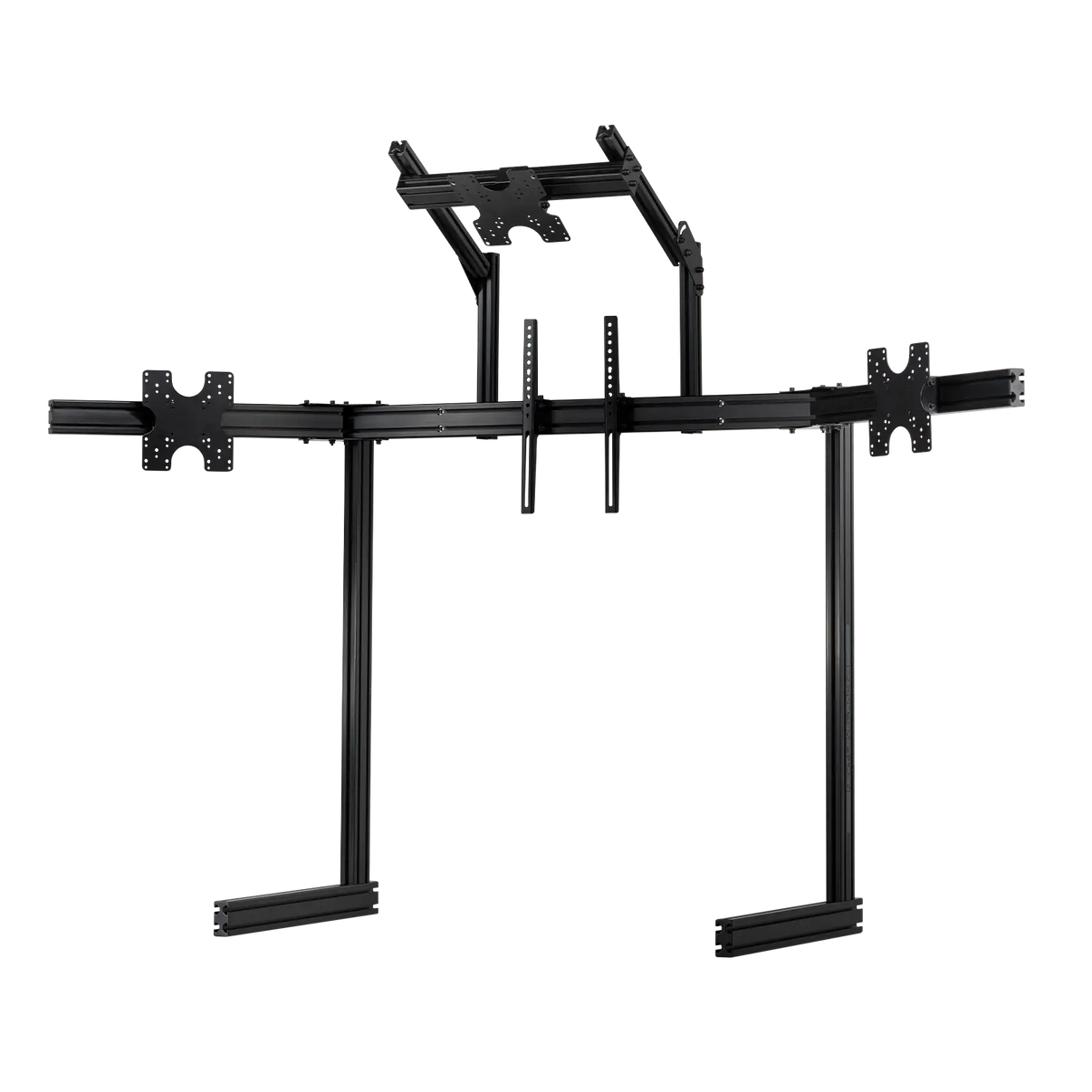

The Next Level Racing® Elite Freestanding Quad Monitor Stand – Black Edition is a structural display mounting system designed for multi-monitor simulation environments.
Constructed from 6063 black anodized aluminum extrusion, this freestanding frame supports four 21”–43” monitors. It features a triple surround configuration with a dedicated overhead display mount to expand the vertical field of view for racing and flight simulation.
Technical Features
- Quad Display Capacity: Accommodates three surround monitors plus one overhead display (21”–43”).
- Elite-Grade Materials: Post-anodized 6063 aluminum profile with powder-coated carbon steel hardware.
- Freestanding Foundation: Structural independence from the simulator chassis to isolate screens from vibration.
- Visual Stability: Engineered to support the mass of four displays in commercial and motion-enabled rigs.
- Cable Management: Integrated T-slot channels for routing display and power cables using included clips.
Mechanical Adjustability
- Vertical & Depth Adjustment: Independent calibration for monitor height, tilt, and distance from the user.
- Upright Width Adjustment: Vertical posts adjust from 720mm to 1240mm to straddle various cockpits.
- Field of View: Articulating outer arms allow for precise angle calibration of side monitors.
- Alignment Tools: Includes a spirit level to ensure horizontal screen accuracy.
Construction Specifications
The foundation utilizes an 80×40mm aluminum profile base, delivering the structural mass required for professional training and home simulation. High-strength steel components ensure that the overhead display remains secure and aligned even when integrated with high-load motion platforms.
System Compatibility
- Compatible with the full range of Next Level Racing® cockpits and wheel stands.
- Extended width base allows for compatibility with most third-party aluminum profile cockpits.
- Suitable for home, professional, and commercial simulation applications.
Package Contents
- Black Anodized Aluminum Extrusions
- 4x Universal VESA Mounting Plates
- Next Level Racing® Outer Mounting Arms and Overhead Bracket
- Next Level Racing® Cable Management Clips and End Caps
- Spirit Level and Assembly Hardware
Specifications
- Screen Support: 4 × 21”–43”
- VESA Range: 75x75mm up to 200x200mm
- Width Adjustment: 720–1240 mm
- Assembled Dimensions: 71 × 242.5 × 200 cm
- Product Weight: 31.3 kg / 69 lbs
- MPN: NLR-E037
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
| Mount/Stand features | Adjustable angle, Adjustable dimensions, Cable management |
