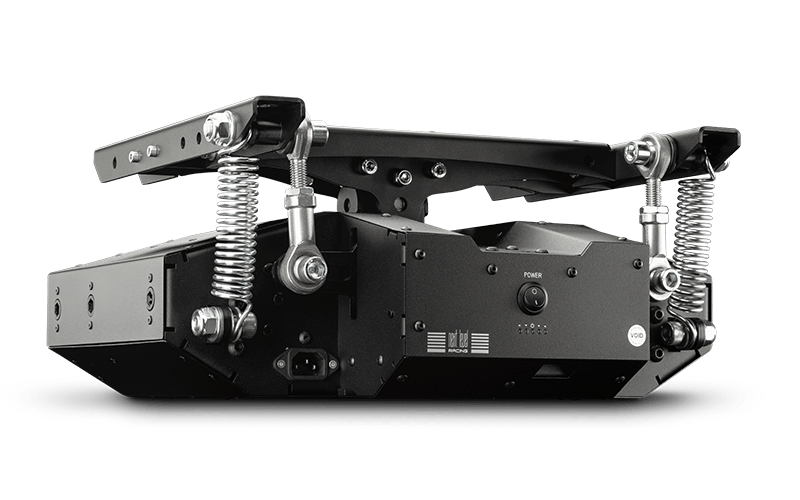

The Next Level Racing® Motion Platform V3 is a dual-axis seat-moving system designed to provide high-fidelity motion telemetry for racing and flight simulation.
By focusing movement exclusively on the seat, the V3 translates physics data—such as pitch, roll, and tactile vibrations—directly to the user. It integrates with the Next Level Racing® ecosystem to support home, commercial, and professional training environments.
Technical Features
- Seat-Mover Architecture: Moves the seat independently of the cockpit frame to isolate g-force cues.
- VR Integration: Includes VR Headway technology within the Platform Manager software to stabilize the field of view.
- Tactile Transducers: Dual vibration points provide telemetry-driven feedback for road texture and gear shifts.
- Quiet Operation: Engineered with acoustic internal panels to minimize mechanical noise during high-frequency use.
- Safety Systems: Features electromagnetic safety brakes and comprehensive power protection (PFC).
- Thermal Management: Adaptive fan speed control with both passive and active cooling systems.
VR & Professional Application
The Motion Platform V3 is engineered for stability in VR environments and high-traffic commercial settings.
- VR Headway: Real-time software compensation that syncs VR headset positioning with physical motion.
- Commercial Warranty: Manufactured for durability with a 1-year commercial warranty (subject to manufacturer terms).
- Software SDK: Available separately for developers seeking custom software and VR integration.
Seat-Mover Engineering
The V3 is designed so only the seat moves. This allows the system to deliver high-velocity "pressure" cues against the user's body, which are intended to simulate sustained g-forces during cornering and braking.
- Direct Force Transfer: Telemetry effects are applied to muscle pressure points for a tactile response.
- Environmental Feedback: Simulates track surface bumps, engine vibrations, and collision impacts.
- Low Latency: High-speed internal processing ensures motion is synchronized with on-screen physics.
Platform Manager Software
The Next Level Racing® Platform Manager serves as the control engine for the V3, providing a direct interface for tuning motion parameters.
- Supports a wide range of PC-based racing and flight titles.
- Granular control over motion intensity, roll, pitch, and haptic effects.
- Automatic software updates for newly released simulation titles.
*Refer to the manufacturer’s compatibility list for specific title support.
Hardware Compatibility
The V3 is designed for direct integration with the following Next Level Racing® products:
- Cockpits: GTtrack, Flight Simulator Pro, and Elite Series.
- Platforms: Next Level Racing® Traction Plus Platform (for 3DOF setups).
Package Contents
- Next Level Racing® V3 Motion Platform
- Platform Manager Software (Digital Download)
- Industrial-grade USB cable and Power cable
- Standard assembly hardware
Specifications
- Max User Weight: 130 kg / 286 lbs
- Power Consumption: 350W Max
- Operational Temperature: +5°C to +35°C (Optimal Performance)
- Product Weight: 25 kg / 55 lbs
- Box Dimensions: 52 × 49 × 26 cm / 21” × 19” × 10”
- MPN: NLR-M001V3
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
| Connection type | Power cord, USB |
| Power source | AC-powered |
