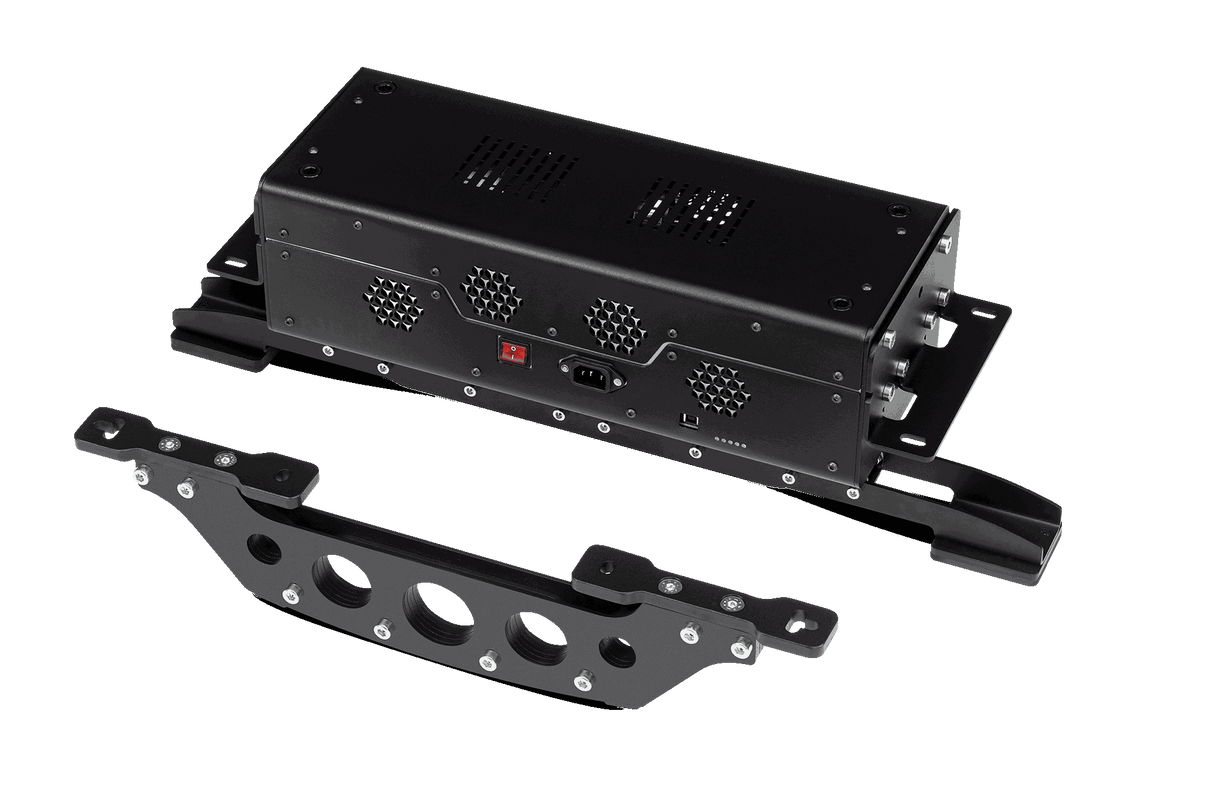

The Next Level Racing® Motion Plus Platform is a high-frequency motion system designed to deliver heave, pitch, and roll telemetry for racing and flight simulation.
By processing 4,000 microprocesses per second, the Motion Plus Platform translates in-game physics into localized chassis movement, allowing users to perceive weight transfer, road textures, and engine vibrations with minimal latency.
Configuration Notice: Multi-platform motion ecosystems require adherence to specific weight limits and mounting adapter requirements.
Technical Features
- Multi-Axis Motion: Provides heave, pitch, and roll for chassis-level simulation.
- Processing Speed: Executes 4,000 microprocesses per second for high-fidelity data translation.
- Control Engine: Managed via Next Level Racing® Platform Manager for PC-based titles.
- Expandable Architecture: Modular design allows integration with Motion V3 and Traction Plus platforms.
- VR Support: Integrated VR compensation technology to maintain visual horizon alignment.
- DOF Scalability: Single unit provides 2-DOF; dual units provide 3-DOF (pitch, roll, heave).
- Encoder Precision: Utilizes magnetic encoders for accurate positional feedback.
Platform Manager Interface
The Motion Plus Platform operates through the Next Level Racing® Platform Manager, a dedicated software suite that facilitates hardware synchronization.
- Native support for major PC racing and flight simulation software.
- User-adjustable sliders for motion intensity, bumps, roll, and pitch.
- Individual unit calibration when running multi-platform ecosystems.
- Telemetry-based profile updates for newly released titles.
Performance Specifications
Engineered for industrial-grade response times, the Motion Plus Platform delivers high-velocity movement to replicate vehicle dynamics accurately.
- Maximum Acceleration: Up to 1100 mm/sec² for rapid g-force onset.
- Velocity (Roll): Up to 21°/sec for responsive lateral cues.
- Velocity (Pitch): Up to 8°/sec for braking and acceleration pitch effects.
Modular Ecosystem Configurations
The Motion Plus system is designed to scale with your simulator requirements:
- 1× Motion Plus: Chassis 2-DOF (utilizing included pivot bar).
- 2× Motion Plus: Chassis 3-DOF (Full pitch, roll, and heave).
- Motion Plus + V3: Combined chassis and seat-mover dynamics.
- Motion Plus + Traction Plus: Advanced chassis motion with understeer/oversteer simulation.
*Final degrees of freedom (DOF) are determined by the specific hardware and software configuration.
Package Contents
- Next Level Racing® Motion Plus Platform
- Foot assembly and mounting kit
- Pivot bar (for single-unit configurations)
- Next Level Racing® Platform Manager Software (Digital Download)
- USB and Power cable set
Hardware Compatibility
- Cockpits: Elite Series, GTTrack, Go Kart Plus (with adapter), F-GT & Flight Simulator (with brackets).
- Motion: Motion Platform V3, Traction Plus Platform.
Compatible with Windows-based PC titles via Platform Manager.
Specifications
- Max Payload: 250 kg / 550 lbs
- Power Source: 115-230VAC (Auto-switching)
- Product Weight: 21.7 kg / 48 lbs (Platform + Bar)
- Product Dimensions: 70 × 18.2 × 20 cm / 27.6 × 7.2 × 7.9 in
- Working Temperature: 4°C to 45°C
- MPN: NLR-M007
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
| Connection type | Wired |
| Power source | AC-powered |
