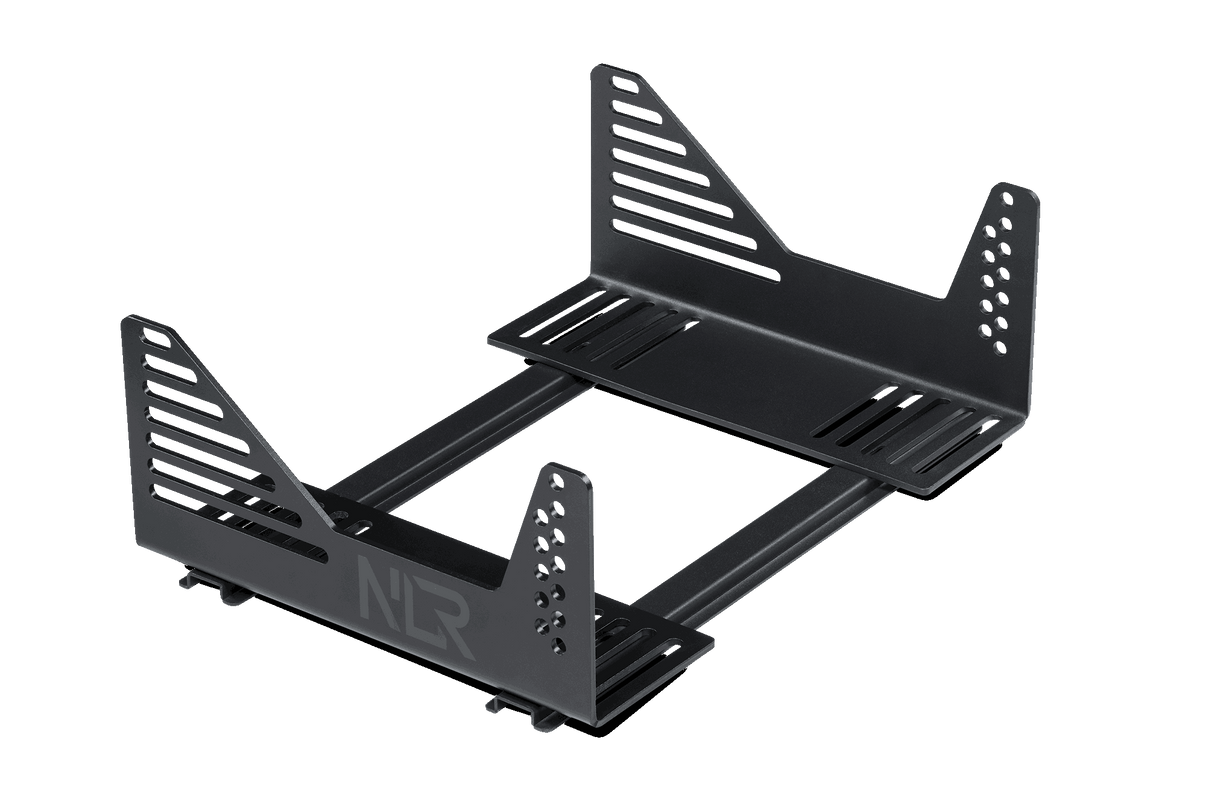

The Next Level Racing® Universal Seat Brackets are engineered to interface side-mount racing seats with simulator cockpits and aluminum profile rigs.
Manufactured from 5mm carbon steel, these brackets provide a rigid mounting interface and extensive geometric adjustments to define the user's seating position.
Technical Features
- Constructed from heavy-duty 5mm carbon steel for structural integrity.
- 84 distinct mounting increments for precise seat height and tilt.
- Universal slot design compatible with most side-mount bucket seats.
- Compatible with both standard cockpits and T-slot aluminum profiles.
Adjustment Range
The brackets feature 84 adjustment positions. This allows users to fine-tune the seat’s vertical elevation, horizontal reach, and recline angle. The mounting slots also allow for width variations to accommodate different seat shell dimensions.
System Compatibility
- NLR Ecosystem: GTtrack, F-GT, and Elite Series Cockpits.
- Aluminum Profiles: Fits standard "8020" T-slot extrusions.
- Seats: Compatible with major side-mount racing seats (including Next Level Racing® ES1).
Note: Horizontal crossbars are included specifically for integration with the F-GT cockpit frame.
Package Contents
- 1 x Set of Universal Seat Brackets (Left and Right)
- 2 x F-GT Compatibility Crossbars
- Required mounting hardware for seat and frame attachment
- Assembly instructions
Specifications
- Material: 5mm Carbon Steel
- Product Dimensions: 36 x 12.5 x 17 cm / 14.1 x 4.9 x 6.7 inches
- Box Dimensions: 49 x 20 x 14 cm / 19.3 x 7.9 x 5.5 inches
- Boxed Weight: 7.5 kg / 16.5 lbs
- MPN: NLR-A017
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
