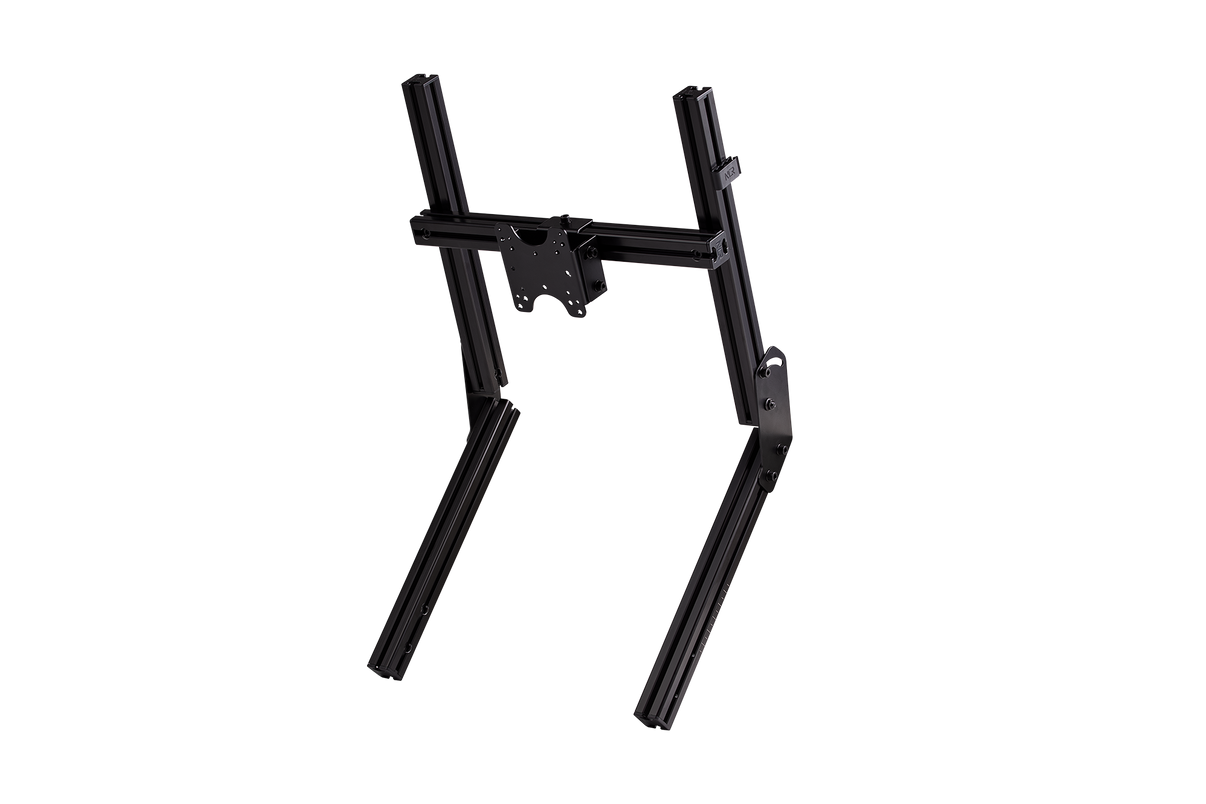

The Next Level Racing® Elite Direct Mount Overhead Monitor Add-On – Black Edition is a structural expansion kit designed to mount a secondary display directly above the primary monitor on Elite Series cockpits.
Finished in premium black anodized aluminum, this mount integrates with the cockpit’s aluminum profile uprights to provide a dedicated platform for telemetry, race timing, or secondary simulation tools.
Technical Features
- Direct-mount interface for Elite Series aluminum profile cockpits.
- Supports VESA-compatible overhead monitors up to 32 inches.
- Anodized black finish to maintain visual consistency with the Elite ecosystem.
- Provides a dedicated viewing angle for live telemetry and race management software.
- Engineered for structural rigidity in non-motion simulator configurations.
Simulation Functionality
The overhead display configuration introducing a secondary visual dimension for critical race-day data. By isolating telemetry, broadcast tools, or lap timing to an overhead screen, users can maintain an unobstructed field of view on the primary driving display.
Mechanical Adjustability
- Vertical Range: 100 mm of height adjustment.
- Horizontal Range: 239 mm of depth adjustment.
- Tilt Capability: Up to 48 degrees of downward pitch.
- Fine-Tuning: T-slot profile design allows for precise screen centering and alignment.
Compatibility & Configuration
This add-on is specifically designed for the Next Level Racing® Elite Series cockpits.
Note: This direct-mount solution is recommended for static (non-motion) setups. For users utilizing Motion Plus or Traction Plus platforms, a freestanding monitor stand is advised to prevent mechanical vibration transfer to the display hardware.
Package Contents
- Black Anodized Aluminum Extrusions
- VESA Mounting Plates (75x75 and 100x100 mm)
- Next Level Racing® Cable Management Clips
- Next Level Racing® Custom End Caps
- Industrial Mounting Hardware Kit
Specifications
- Max Screen Size: Up to 32 inches
- Product Dimensions: 49.5 x 52 x 78 cm / 19.5 x 20.5 x 30.1 inches
- Net Weight: 4.7 kg / 10.3 lbs
- Boxed Weight: 5.25 kg / 11.6 lbs
- MPN: NLR-E018
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
| Mount/Stand features | Adjustable angle, Adjustable dimensions, Easy to install |
