Next Level Racing Elite Formula & Hybrid Upgrade Kit (NLR-E024)

• Adjustable hardware for Formula, GT, and Hybrid seating positions.
• Construction features laser-cut carbon steel for high-load stability.
• Industrial-grade powder-coated finish for surface protection.
• Includes heavy-duty 5mm carbon steel side-mount seat brackets.
• Modular design integrates directly with existing Elite Series aluminum profiles.

• Pedal Plate: 70° total angle range (40° downward, 30° upward).
• Seating: Seat brackets provide 98 distinct mounting configurations.
• Versatility: Supports rapid geometry changes between different motorsport disciplines.

The kit is manufactured using precision laser cutting to ensure tight tolerances and structural alignment. All steel components are finished in a durable powder coating, matching the aesthetic and industrial standards of the Elite Series ecosystem.

This upgrade kit is intended for Elite Series cockpits originally configured for GT-only seating. It provides the necessary offset brackets to achieve the elevated feet position required for Formula and Hybrid simulation.

Note: Verify your cockpit model, as some Elite versions include these components as standard equipment.

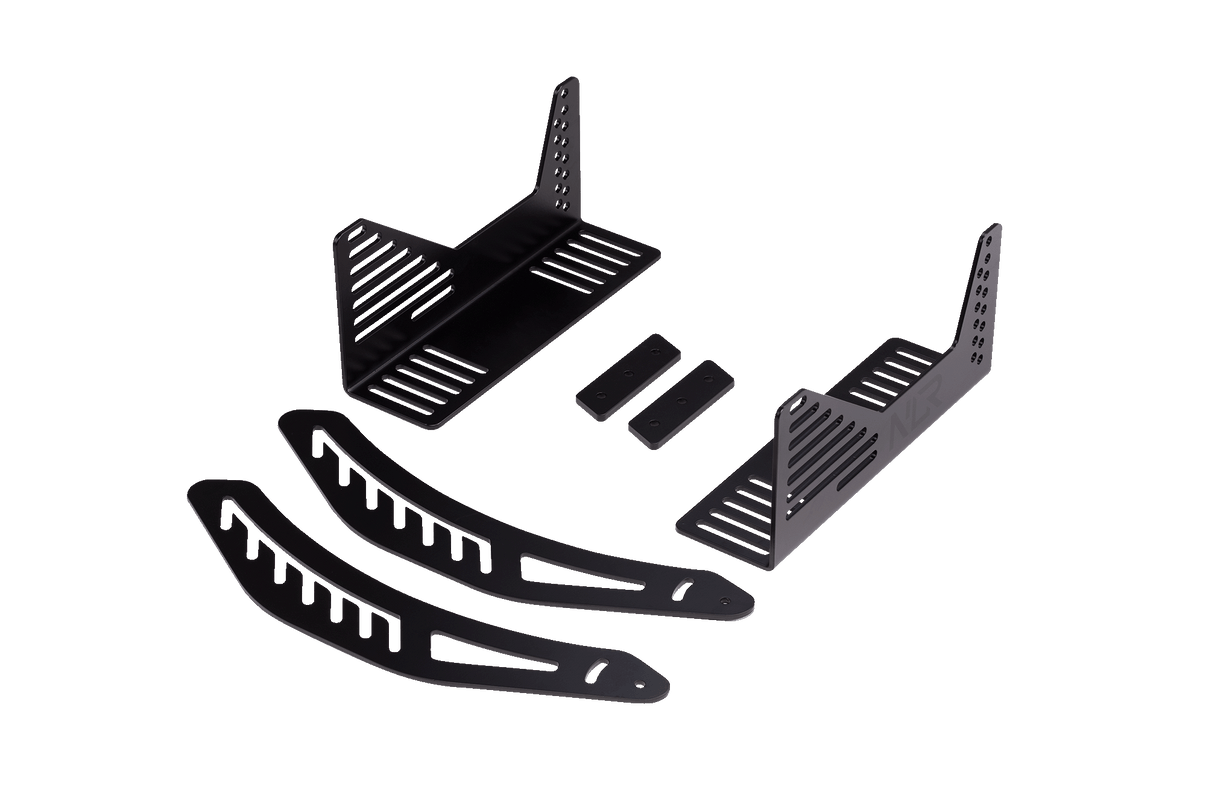

• 2 x 5mm Carbon Steel Seat Brackets
• Carbon Steel Formula Pedal Brackets
• High-tensile assembly hardware kit
• Step-by-step installation instructions

• Supported User Height: 120 – 195 cm / 4' – 6.4'
• Max Weight Capacity: 150 kg / 330 lbs
• Product Weight: 7.8 kg / 17.2 lbs
• Box Dimensions: 54.5 x 21.0 x 15.5 cm / 21.5 x 8.3 x 6.1 inches
• MPN: NLR-E024
