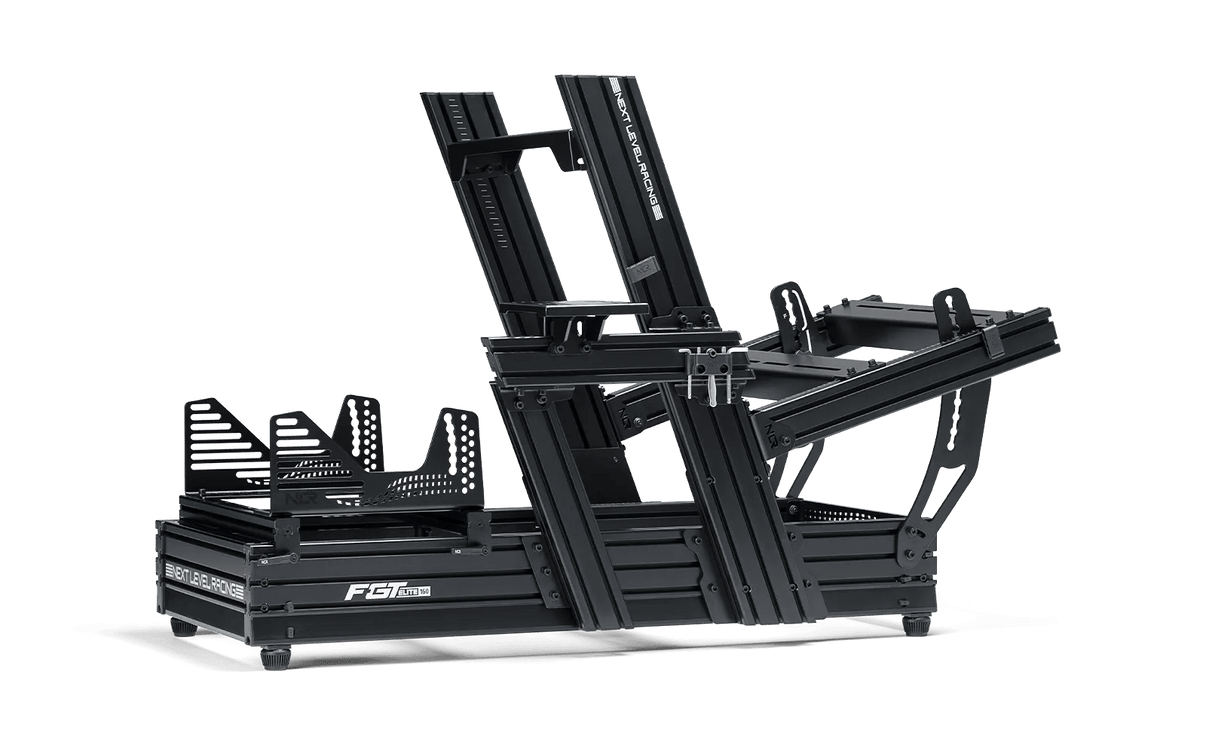

The Next Level Racing® F-GT Elite 160 Wheel Plate Edition is a premium multi-position aluminum-profile cockpit engineered for demanding Formula, Hybrid, GT, Truck, and Tank simulation. Its custom 160 × 40 mm base extrusion, reinforced wheel and pedal mounting structures, 5 mm carbon-steel seat brackets, proprietary seat-slider system, and extensive adjustment range create a highly rigid foundation for advanced direct-drive, load-cell, hydraulic, haptic, and motion simulator builds.
The F-GT Elite 160 is the heavier-duty member of the F-GT Elite family. Its 160 mm base profile, reinforced mounting structures, and included multi-position seat hardware make it the stronger choice for high-end direct-drive systems, aggressive pedal loads, motion upgrades, and premium commercial installations.
We recommend the Wheel Plate Edition for bottom-mounted wheelbases and for users who want the flexibility to change wheel hardware later without committing to a dedicated front- or side-mount configuration.
The cockpit uses a custom 160 × 40 mm aluminum base profile with additional 40 × 40, 40 × 80, and 40 × 120 mm extrusion throughout the chassis.
Supports demanding steering, braking, haptic, and motion loads.
Provides a durable, cohesive appearance across the Elite cockpit.
Simplify assembly while supporting precise structural alignment.
The cockpit supports multiple seating and pedal geometries through adjustable seat brackets, pedal plates, wheel position, and profile placement.
Reclined seat geometry with elevated pedals for single-seater simulation.
Combines selected Formula and GT geometry for a personalized setup.
Upright sports-car, touring-car, endurance, rally, and drift geometry.
Supports a more upright wheel and pedal arrangement.
Provides another upright control layout for compatible applications.
Included brackets support extensive height and angle adjustment.
The included carbon-steel wheel plate is designed for compatible bottom-mounted wheelbases from major simulator-hardware manufacturers.
Supports many common Logitech, Thrustmaster, Fanatec, MOZA, Asetek, and other wheelbase patterns.
Refine wheel position relative to the seat and pedals.
The split pedal-plate system uses 5 mm carbon-steel components and adjustable fins to support different pedal heights, angles, and distances.
Designed for firm braking inputs from advanced pedal sets.
Provides a rigid mounting foundation for compatible high-load systems.
Shoulder-bolt and fin geometry assists Formula-to-GT adjustment.
The cockpit includes 5 mm carbon-steel side-mount seat brackets and NLR’s proprietary fore-and-aft seat-slider system.
Supports GT, Hybrid, and Formula seating geometry.
Ratcheting sliders help accommodate different driver heights.
Designed for compatible fixed-back simulator seats.
The included shifter and handbrake plate can be positioned on the left or right side and supports many common peripheral mounting patterns.
Supports compatible H-pattern and sequential shifters.
Supports compatible rally and drift handbrakes.
Provides a dedicated mounting point for compatible tactile transducers.
The F-GT Elite 160 is compatible with selected Next Level Racing motion products.
Mounting brackets are included for supported seat-moving configurations.
Supports compatible chassis-motion configurations.
Requires the applicable Elite motion adapter hardware.
Assists entry and exit around the high-sided 160 mm cockpit base.
Help level the cockpit and reduce direct contact with the floor.
Provides a flagship structural foundation for demanding wheelbases.
Supports advanced load-cell and hydraulic pedal systems.
Supports multiple seating positions in one cockpit.
Integrates with selected NLR motion platforms and adapters.
Suits no-compromise dedicated racing rooms.
Provides a robust platform for professional and customer-facing use.
Choose the F-GT Elite 160.
Compare the standard F-GT Elite or F-GT Elite Lite.
Choose this Wheel Plate Edition.
Compare the Front & Side Mount Edition or add the correct adapter.
| Brand | Next Level Racing® |
|---|---|
| Official U.S. Product Name | F-GT Elite 160 Wheel Plate Edition |
| Manufacturer SKU / MPN | NLR-E025 |
| UPC / GTIN-12 | 850041503318 |
| Current U.S. MSRP | $1,099.99 |
| Primary Base Profile | 160 × 40 mm aluminum extrusion |
| Additional Profile Sizes | 40 × 40, 40 × 80, and 40 × 120 mm |
| Driving Positions | Formula, Hybrid, GT, Truck, and Tank |
| Wheel Mount | Universal bottom-mount wheel plate |
| Seat Hardware | 5 mm carbon-steel side brackets and NLR slider system included |
| Seat Included | No |
| Assembled Dimensions | 136 × 84.2 × 94.2 cm / approximately 53.5 × 33.1 × 37.1 in |
| Product Weight | 57.1 kg / approximately 125.9 lb |
| Distributor Package Dimensions | 49.8 × 12.4 × 17.3 in |
| Distributor Boxed Weight | 140.2 lb |
| User Height Range | 120–210 cm / approximately 4 ft to 6 ft 9 in |
| Warranty | 1-year manufacturer limited warranty; terms apply |
| Intended Use | Simulation and esports only |
The SKU is NLR-E025 and the UPC is 850041503318.
No. Seat brackets and the NLR slider system are included, but the seat is sold separately.
The cockpit supports Formula, Hybrid, GT, Truck, and Tank positions.
It is intended for compatible bottom-mounted wheelbases. Front- and side-mounted systems may require a separate adapter.
Yes. It is designed for advanced direct-drive systems, subject to exact mounting compatibility.
Yes. Five-millimeter carbon-steel side brackets and the NLR seat-slider system are included.
Yes. Motion Platform V3 mounting brackets are included.
Yes, in supported configurations. Traction Plus requires the applicable Elite motion adapter.
Confirm wheelbase mounting style, pedal pattern, seat and bracket compatibility, room dimensions, motion plans, monitor solution, and entry clearance.
Contact ProSimHQ for help matching a seat, wheelbase, pedals, display, haptics, and motion hardware to the F-GT Elite 160 cockpit.
