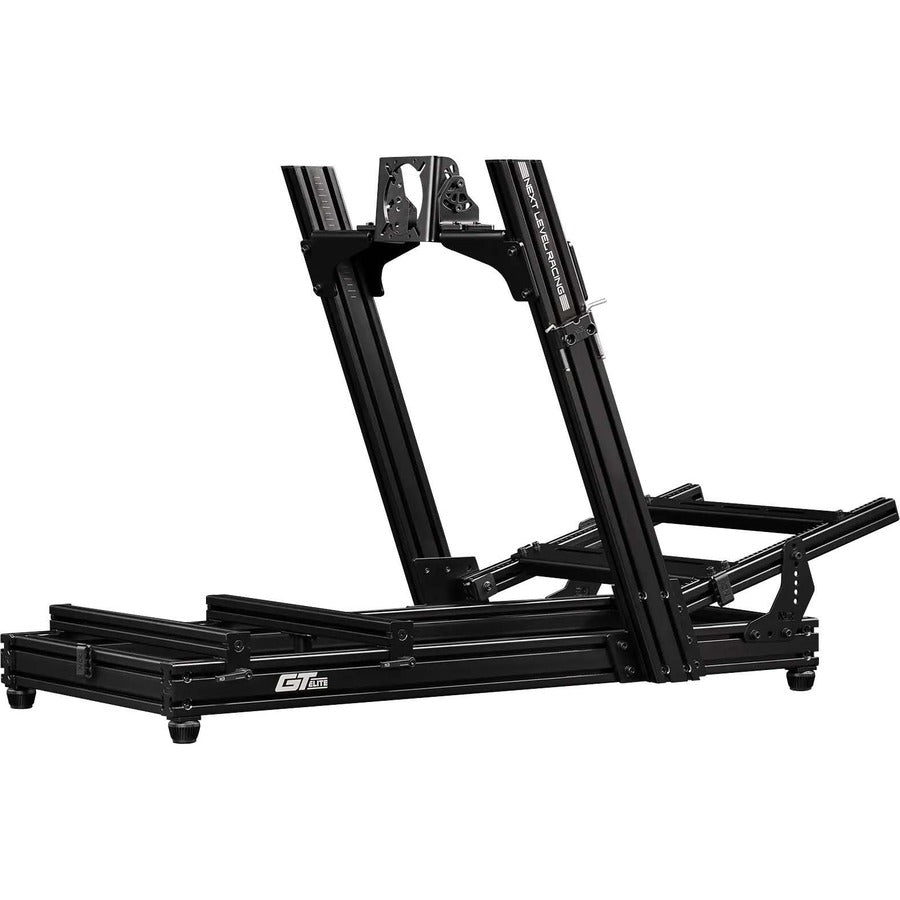

The Next Level Racing® GTElite Lite Front & Side Mount Edition is a dedicated GT-style aluminum-profile cockpit designed for compatible front- and side-mounted direct-drive wheelbases. Its 40 × 40 and 40 × 80 mm aluminum structure, reinforced wheel uprights, adjustable pedal system, included seat sliders, and Elite accessory ecosystem create a high-rigidity foundation for serious home and commercial sim-racing builds.
This edition is the better GTElite Lite choice when the wheelbase is designed for front or side mounting rather than a traditional bottom-mounted wheel plate.
The exact wheelbase model still matters. Mounting patterns vary within the same brand, and selected wheelbases may require their manufacturer’s own adapter bracket.
The included mounting system is designed for compatible direct-drive wheelbases that attach through front-face or side-bracket mounting points.
Supports compatible wheelbases that attach through front-facing mounting points.
Supports compatible wheelbases that attach through left- and right-side brackets.
Allows steering height, angle, and reach to be refined for the driver.
The cockpit is supplied as a dedicated GT-style platform for sports-car, touring-car, endurance, rally, drift, and road-racing simulation.
Supports an upright sports-car and touring-car seating layout.
Works with compatible shifter and handbrake accessories.
Seat, wheel, and pedal adjustment support multiple drivers.
The cockpit uses black anodized aluminum extrusion with reinforced steel connections and precision-machined mounting points.
Provides the primary cockpit structure and adjustment channels.
Reinforce the connection between the wheel uprights and base.
Provides a durable, professional appearance across the frame.
Multi-folded carbon-steel plates and reinforced mounting structures help reduce movement under direct-drive steering and load-cell braking.
Designed for compatible high-output wheelbases.
Provides a rigid adjustable platform for compatible pedal systems.
Assist accurate and repeatable adjustment.
The pedal platform supports height, angle, and distance adjustment for different drivers and pedal systems.
Refines pedal reach for different driver heights.
Raises or lowers the pedal system relative to the seat.
Adjusts pedal-face orientation for comfort and control.
The cockpit includes the NLR ratcheting fore-and-aft seat-slider system for compatible seat installations.
Helps accommodate different driver heights and leg lengths.
Provides support on both sides of the seat base.
Supports selected NLR and third-party seats with the correct brackets.
Supports compatible shifter mounting on the selected side.
Supports compatible handbrake placement with the proper hardware.
Add mounting points for compatible tactile-feedback hardware.
Help level the cockpit and reduce direct floor contact.
Help route peripheral and power cables along the frame.
Assist assembly, alignment, and later adjustments.
The GTElite Lite can be expanded for selected Next Level Racing motion products.
Supports compatible Motion Plus configurations.
May require the separate Elite Motion Adaptor Upgrade Kit.
Designed for compatible front- and side-mounted wheelbases.
Optimized for sports-car, touring-car, endurance, rally, and drift use.
Provides a reinforced adjustable pedal platform.
Supports selected NLR motion configurations.
Provides aluminum-profile construction in a lighter frame.
Offers broad adjustment for multiple drivers.
For compatible wheelbases designed for front- or side-mount installation.
For compatible wheelbases designed for standard bottom mounting.
| Brand | Next Level Racing® |
|---|---|
| Official Product Name | GTElite Lite Front & Side Mount Edition |
| Manufacturer SKU / MPN | NLR-E029 |
| Driving Position | Dedicated GT |
| Wheelbase Mount | Compatible front- and side-mount direct-drive systems |
| Aluminum Profile | 40 × 40 and 40 × 80 mm |
| Finish | Black anodized aluminum |
| Upright Reinforcement | 8 mm carbon-steel plates |
| Seat Slider | NLR ratcheting slider system included |
| Seat Included | No |
| Supported User Height | 120–210 cm / approximately 4 ft to 6 ft 9 in |
| Maximum Supported User Weight | 150 kg / 330 lb |
| Assembled Dimensions | 148 × 82.5 × 86.5 cm / approximately 58.3 × 32.5 × 34.1 in |
| Product Weight | Approximately 34 kg / 74.9 lb |
| Package Dimensions | Approximately 50.6 × 16.1 × 9.9 in |
| Shipping Weight | Approximately 80.7 lb |
| UPC / GTIN-12 | Confirm from current distributor portal |
| Current U.S. Price | Confirm from current distributor portal |
| Motion Compatibility | Selected Motion Plus configurations; V3 and Traction Plus may require an adapter kit |
| Warranty | Confirm current distributor warranty record |
The manufacturer SKU is NLR-E029.
No. The seat is sold separately.
Yes. The NLR ratcheting seat-slider system is included.
No. Confirm the exact wheelbase model, mounting pattern, adapter requirements, and housing clearance before ordering.
NLR-E029 is designed for compatible front- and side-mounted wheelbases. NLR-E028 uses a traditional bottom-mounted wheel plate.
Yes, in selected NLR motion configurations. Motion Platform V3 and Traction Plus may require the separate Elite Motion Adaptor Upgrade Kit.
The cockpit weighs approximately 74.9 lb before the seat and electronics are installed.
Use approximately 80.7 lb unless your current distributor portal lists a different boxed weight.
Contact ProSimHQ with the exact wheelbase, pedals, seat, shifter, handbrake, display, and motion plans so we can confirm the complete setup.
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
| Connection type | Wired |
