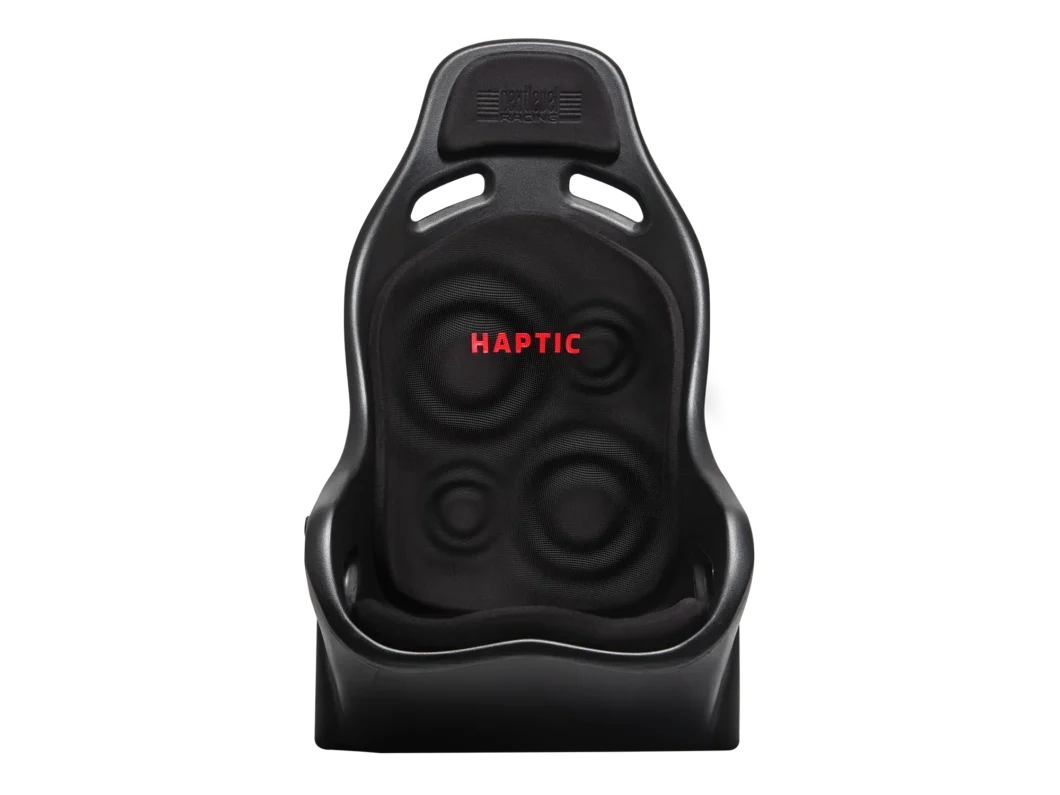

The Next Level Racing® ES1 Haptic Seat integrates a bucket-style racing seat with built-in haptic feedback technology, delivering a responsive and immersive simulation experience. Designed for compatibility, durability, and precise feedback control, it is suited for advanced sim racing environments.
Overview
The ES1 Haptic Seat combines a rigid bucket seat structure with an integrated multi-motor haptic system. This design provides localized feedback directly through the seat, helping users experience in-game effects such as road surface changes, gear shifts, and braking inputs.
The embedded system reduces vibration loss compared to external pads and maintains consistent feedback positioning throughout use.
Integrated Haptic System
- Eight integrated haptic motors built into the seat structure
- Designed for responsive and localized feedback
- Supports telemetry-based feedback through compatible software
- Audio-based feedback supported via 3.5mm input (console use)
When connected to a PC, compatible software allows advanced control over feedback zones and effects.
Software & Control
The ES1 Haptic Seat supports Next Level Racing® HFS software and SimHub integration for customizable feedback control. Users can adjust intensity, response, and effect mapping based on supported telemetry data.
Console Use: Feedback is generated through audio input only. Individual motor control and telemetry-based feedback require a PC connection.
Comfort & Construction
The seat features a rigid shell construction combined with cold-moulded foam padding for consistent support during extended sessions. The racing suede-style fabric enhances grip and durability.
The bucket-style design helps maintain stable positioning under braking and steering inputs.
Mounting & Compatibility
- Side-mount compatible with standard racing seat brackets
- Compatible with Next Level Racing® Elite cockpits
- Compatible with GTtrack and F-GT (with seat slider adjustments)
- Works with select third-party cockpits with side mounting support
Compatibility should be verified based on mounting measurements for third-party setups.
Specifications
- Part Number: NLR-E067
- Supported Height: 120 cm – 210 cm (3’9” – 6’9”)
- Supported Waist: Up to 42 inches
- Max Weight Capacity: 150 kg (331 lbs)
- Product Dimensions: 77 x 53.5 x 85 cm (30.3" x 21.1" x 33.5")
- Product Weight: 12.6 kg (27.8 lbs)
- Box Dimensions: 110 x 50.4 x 55.3 cm
- Box Weight: 18.9 kg (41.7 lbs)
What’s Included
- Next Level Racing® ES1 Haptic Seat
- Power supply
- Mounting hardware
Assembly instructions are provided digitally by the manufacturer.
| Specification name | Specification Value |
|---|---|
| Color pattern | Black |
