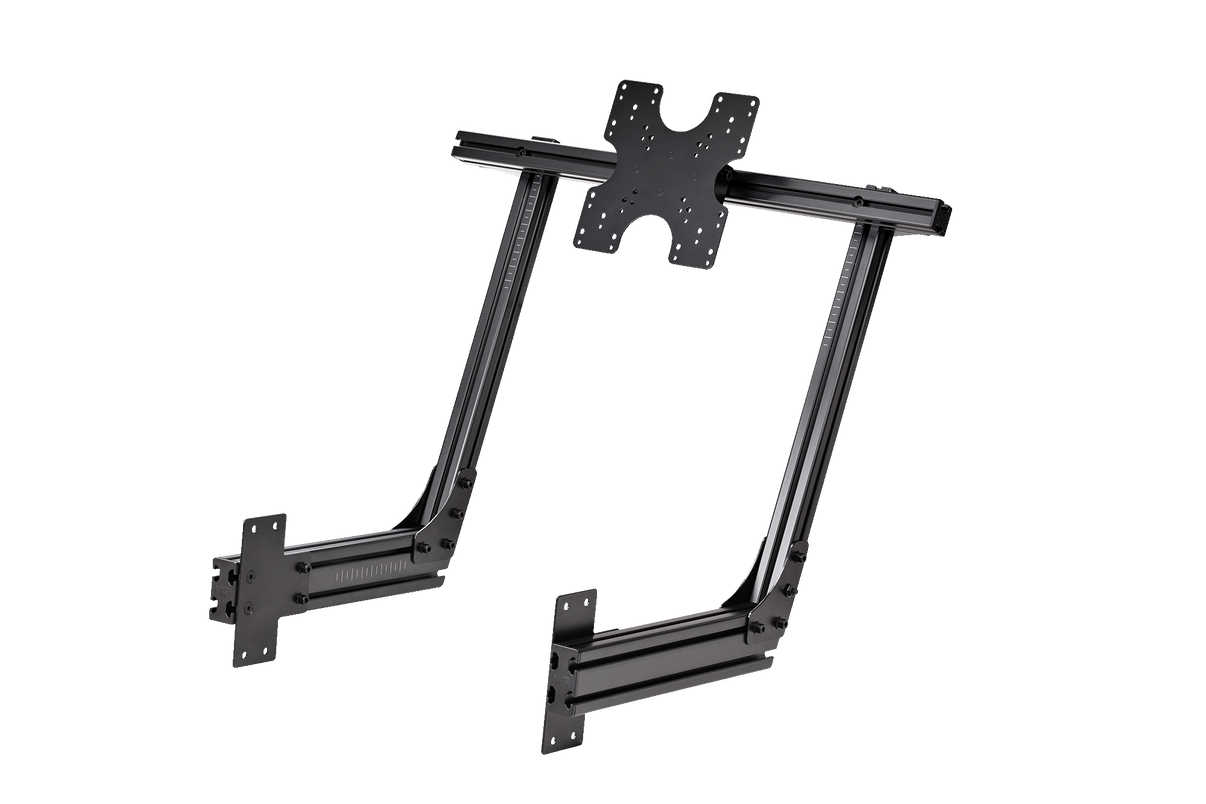

The Next Level Racing® F-GT Elite Direct Monitor Mount is a structural mounting solution designed to attach a single display directly to F-GT Elite and Elite series cockpits.
Finished in post-anodized Carbon Grey, this mount integrates with the aluminum profile chassis to create a unified racing station, offering localized screen positioning without the need for a separate freestanding unit.
Technical Features
- Direct cockpit-mounted design for integrated display management.
- Compatible with single flat screens from 27” to 43”.
- Optimized for ultra-wide displays up to 49”.
- Constructed from scratch-resistant anodized aluminum to match Elite series aesthetics.
Adjustment Range
- Vertical Range: 200 mm of height adjustment.
- Horizontal Range: 239 mm of depth adjustment.
- Tilt Capability: Up to 18° of pitch adjustment.
- System: Three-stage height system with precision VESA rotation and tilt.
Construction Standards
The mount is engineered using laser-aligned aluminum extrusions and electroplated hardware. The T-slot design allows for precise alignment of the monitor relative to the driver's field of view while maintaining structural rigidity under vibration.
Compatibility & Usage
Designed for the Next Level Racing® F-GT Elite Cockpit and other Elite Series aluminum profile frames.
Notice: Users with Motion Plus or Traction Plus platforms should utilize a freestanding monitor stand to isolate the display from motion-induced vibration.
Package Contents
- Carbon Grey Aluminum Extrusions
- VESA Mounting Plates (Supports 75x75 up to 200x200mm)
- NLR Cable Management Clips and Custom End Caps
- All necessary mounting hardware and assembly tools
Specifications
- Display Support: 27”–43” Flat; Up to 49” Ultra-wide
- Product Dimensions: 44.3 x 75.8 x 91.3 cm / 17.4 x 29.8 x 35.9 inches
- Boxed Weight: 9.86 kg / 21.8 lbs
- Finish: Anodized Carbon Grey
- MPN: NLR-E014
| Specification name | Specification Value |
|---|---|
| Color pattern | Gray, Black |
| Mount/Stand features | Adjustable angle, Adjustable dimensions, Easy to install |
