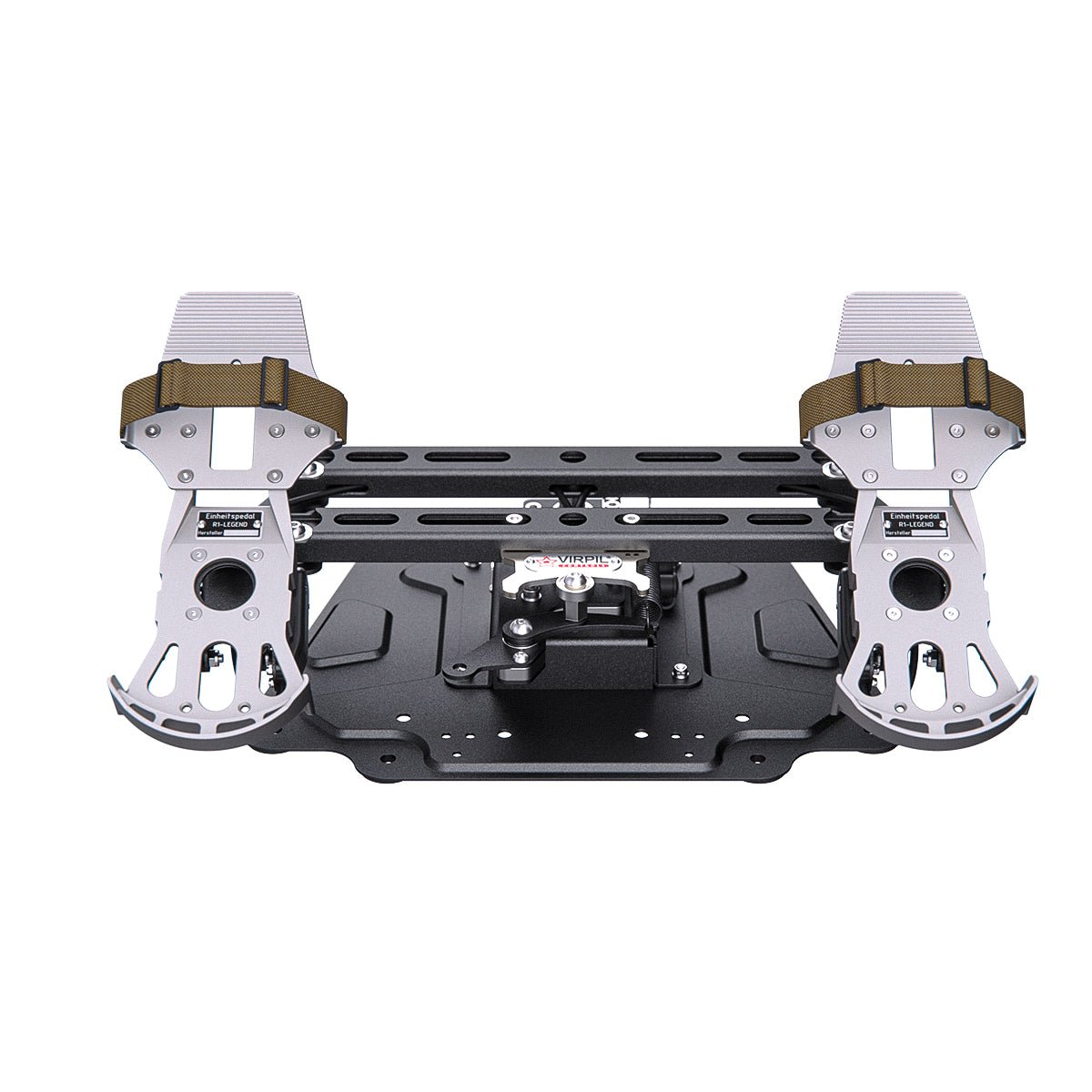

The VIRPIL R1-LEGEND Rudder Pedals are a three-axis pedal set for PC flight and space simulation, giving you a yaw axis plus independent left and right toe brakes. VIRPIL describes the R1 series as its newest generation of rudder pedals, built with all-metal construction and VPC Contactless Digital Proximity Sensors.
The LEGEND variant ships with full-foot plates. It is for the simulator pilot who wants genuine toe-brake control and a pedal feel they can tune mechanically rather than in software.
Special order. This product is factory-allocated by VIRPIL Controls, with an estimated total delivery timeframe of 27–60 business days.
Independent toe braking is the practical reason to step up from a two-axis pedal set. It is what makes realistic taxiing, differential braking and crosswind rollouts possible — the difference shows on the ground rather than in the air.
Centering feel on the R1-LEGEND is mechanical. Three cams and two springs are supplied, so the response is changed by swapping a part rather than by applying a curve in software.
VIRPIL specifies 3-axis input on the R1 series:
the primary rudder control.
separate left and right braking.
independent toe braking is what makes realistic taxiing, differential braking and crosswind rollouts possible, and it is the main reason to step up from a two-axis pedal set.
nothing rubs, so there is no potentiometer wiper to wear out and develop the spiking and drift that eventually affects contact-based pedals.
VIRPIL specifies all-metal construction for the R1 series. Weight and rigidity are what keep a pedal set planted under firm rudder input.
Centering feel is mechanical, and you change it by swapping the cam. All three are in the box:
pre-installed at the factory; a smooth transition through centre.
a distinct centre detent.
linear travel with no centre notch, often preferred for helicopter and space-sim flying.
a Heavy Spring pre-installed, plus a Standard Spring.
two LEGEND foot plates are included.
a set is supplied so the pedal angle can be set to suit your seating position.
VIRPIL publishes an R1 Pedals Damper Upgrade Kit for the R1 series, sold separately.
connects to a PC by USB. Both a USB cable and an AUX cable are supplied.
Full-foot LEGEND plates are the variant VIRPIL supplies with this model.
Three-axis input with independent braking for ground handling.
The supplied No Center Cam gives linear travel with no centre notch.
Independent toe brakes are the capability a two-axis set does not provide.
Three cams and two springs change the centring response mechanically.
VIRPIL publishes an R1 Pedals Damper Upgrade Kit for the R1 series, sold separately.
VIRPIL's published contents differ in one item. The rest of the published contents are identical.
VIRPIL's published contents list LEGEND Foot Plates for this model — the full-foot plates.
VIRPIL's published contents list Foot Plates for that model. Compare the R1-FALCON.
| Brand | VIRPIL Controls |
|---|---|
| Official Product Name | R1-LEGEND Rudder Pedals |
| Manufacturer SKU / MPN | VPC-305-002 |
| Axes | 3 — yaw, left toe brake, right toe brake |
| Sensors | VPC Contactless Digital Proximity Sensors |
| Construction | All metal |
| Centering Cams Supplied | No Center, Soft Center (pre-installed), Hard Center |
| Springs Supplied | Heavy (pre-installed), Standard |
| Foot Plates | 2 × LEGEND Foot Plates |
| Connection | USB; USB and AUX cables supplied |
| Warranty | Manufacturer warranty terms apply. See our Warranty Information and Product Support page. |
VIRPIL's published contents:
VIRPIL Controls builds and allocates these units to order rather than shipping them from local stock.
27–60 business days.
applicable shipping charges are shown at checkout before payment is completed.
Yes. VIRPIL specifies 3-axis input: yaw plus independent left and right toe brakes.
The Soft Center Cam. A Hard Center Cam and a No Center Cam are also supplied.
The Heavy Spring. A Standard Spring is also supplied.
VIRPIL publishes an R1 Pedals Damper Upgrade Kit for the R1 series, sold separately.
The foot plates. VIRPIL's published contents list LEGEND Foot Plates for this model and Foot Plates for the R1-FALCON. The rest of the published contents are identical.
VIRPIL does not publish a mounting pattern, overall dimensions or a weight for the R1 pedals. Contact ProSimHQ and we will confirm the mounting details with VIRPIL for your build rather than guess.
