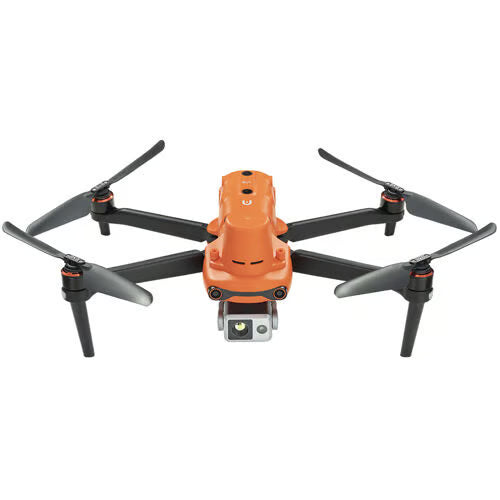

The Autel EVO II Dual 640T RTK Rugged Bundle V3 is a high-precision aerial solution engineered for surveying, industrial inspection, and public safety. This configuration (MPN: EVO2-640T-RTK-V3-BUN) integrates a 640×512 radiometric thermal sensor with a 50MP RYYB visible camera and a factory-installed RTK module. Delivering centimeter-level positioning accuracy and exceptional low-light imaging, this V3 platform is the definitive tool for mission-critical 3D mapping and thermal analysis.
RTK & Centimeter-Level Precision
The V3 RTK module provides real-time, high-accuracy positioning data, supporting professional workflows and reducing reliance on ground control points.
- Accuracy: 1cm + 1ppm (Horizontal) / 1.5cm + 1ppm (Vertical)
- Positioning: Supports NTRIP, RTK Base Station, and PPK data logging
- TimeSync 2.0: Continuous synchronization between flight controller, camera, and RTK module
- Metadata: Records raw satellite observation data for post-processing
Dual Thermal & 50MP Visible Payload
The dual-camera system provides simultaneous visual and infrared data feeds, optimized for radiometric heat detection and high-detail evidence capture.
- Thermal Sensor: 640 × 512 resolution @ 30 Hz refresh rate
- Visible Sensor: 0.8" 50MP RYYB sensor for superior low-light performance
- Radiometrics: Temperature detection accuracy of ±3 °C with 10 color palettes
- Zoom: 16× Digital and 4× Lossless zoom for safe stand-off inspection
Reliability & Flight Safety
- Flight Time: Up to 38 minutes (achieved in ideal conditions)
- Transmission: SkyLink 2.0 provides up to a 9-mile range (FCC compliant)
- Obstacle Avoidance: 360° coverage via 19 groups of binocular and ultrasonic sensors
- Max Speed: Up to 45 mph (20 m/s) in Ludicrous Mode
Smart Controller V3
The Rugged Bundle features the 7.9-inch Smart Controller V3, designed for professional visibility in high-glare environments.
- Retina Display: 2048 x 1536 resolution with 2000 nit brightness
- Performance: 8-Core processor for smooth 1080p real-time video
- Communication: Tri-band auto-frequency hopping (902-928 MHz, 2.4 GHz, 5.8 GHz)
Technical Specifications & Identification
| Model Number (MPN) | EVO2-640T-RTK-V3-BUN |
| UPC (GTIN) | 889520204422 |
| Ingress Protection | IP43 Rated |
| Warranty | 1-Year Limited Manufacturer Warranty |
