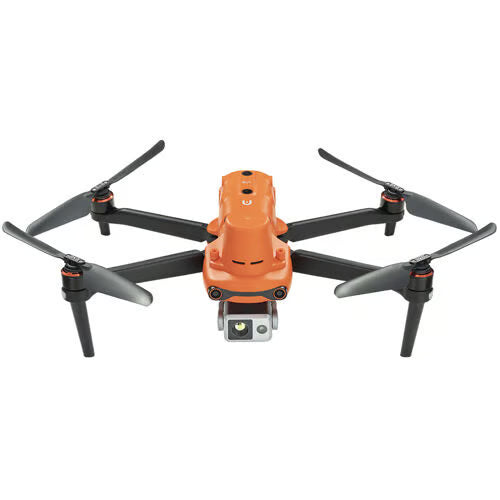

The Autel Robotics EVO II Dual 640T RTK Rugged Bundle V3
combines centimeter-grade RTK positioning with a dual-camera thermal/visible system to deliver mission-ready accuracy for surveying, inspection, public safety, and emergency response. The V3 RTK module locks in real-time precision within minutes, supports PPK and time synchronization, and records raw observation data plus camera exposure parameters for post-processing.
The imaging payload integrates a 640×512 @ 30 Hz thermal sensor (13 mm lens, 16× digital / 4× lossless zoom) with an all-new 0.8" 50 MP RYYB sensor for exceptional low-light performance. Advanced thermal tools include 10 color palettes, Picture-in-Picture, radiometric temperature detection, and a compensation algorithm that keeps readings within ±3 °C, enabling accurate 3D thermal mapping.
Engineered for field reliability, the airframe features 360° obstacle avoidance (19 sensor groups), up to 38 minutes of flight, 9-mile transmission, and 45 mph top speed. Mission tools include Rectangular/Polygon surveys, multi-battery mission resume, and 10-bit A-Log for flexible post-production.
Perfect For
🛰️ Surveying & Mapping – RTK/PPK accuracy without heavy reliance on GCPs
🏗️ Industrial/Utility Inspection – Visual + radiometric thermal data for assets and structures
🚒 Public Safety & SAR – Reliable thermal detection, long range, and obstacle avoidance
🌙 Low-Light Ops – 50 MP RYYB sensor and 10-bit A-Log for clean, gradable footage
Compare EVO II Pro 6K Rugged Bundle V3 vs Enterprise Bundle V3
| Feature | EVO II Pro 6K Rugged Bundle V3 | EVO II Pro 6K Enterprise Bundle V3 |
|---|---|---|
| Camera Sensor | 1-inch CMOS sensor capturing 20 MP stills and 6K video with 12-bit A-Log color. | Same 1-inch CMOS 6K camera with identical image quality and dynamic range. |
| Controller | Autel Smart Controller V3 with 7.9″ Retina display (2048 × 1536, 2000 nit). | Same Smart Controller V3, with Enterprise accessory controls. |
| Enterprise Accessories | — (Standard rugged kit only) | Spotlight, Loudspeaker, Strobe Light for mission communication and illumination. |
| Accessory Mount | Standard mount without expansion port. | Enterprise mount with expansion interface for modular add-ons (e.g., RTK module). |
| RTK Support | Optional (add-on required). | Optional (add-on via Enterprise expansion port; ready for RTK integration). |
| Use Case Focus | Media production, inspection, cinematography, general enterprise use. | Public safety, infrastructure inspection, search & rescue, mapping. |
| Flight Time / Range | ≈ 40 min / 9.3 mi (15 km) range. | ≈ 40 min / 9.3 mi (15 km) range — identical airframe performance. |
| Obstacle Avoidance | 360° protection via 19 sensor groups. | 360° coverage; added software support for accessory operation. |
| Ingress Protection | IP43 weather-resistant airframe. | IP43 weather-resistant airframe. |
| Weight (Shipping) | ≈ 28 lb. | ≈ 28 lb (with accessory modules included). |
| Price / MSRP | Similar to Enterprise version. | Same MSRP as Rugged (varies by region). |
| Best For | Pros needing 6K visuals in a portable kit. | Teams requiring communication, illumination, and enterprise tools. |
Key Features
-
RTK/PPK Precision: Centimeter-level positioning; supports RTK base stations & NTRIP networks
-
Dual-Camera Payload: 640×512 thermal (30 Hz) + 0.8" 50 MP RYYB visible sensor
-
Thermal Toolkit: 13 mm lens, 16× digital / 4× lossless zoom, 10 palettes, PiP, radiometric
-
Temperature Accuracy: Compensation algorithm targets ±3 °C (detects heat sources at 2–20 m)
-
Mission Automation: Rectangular/Polygon missions; mission resume across battery swaps
-
Color & Post: 10-bit A-Log for grading flexibility
-
Obstacle Avoidance: 360° / 19 sensors for comprehensive protection
-
Performance: Up to 38 min flight, 9 miles transmission, 45 mph max speed
-
Workflow Ready: Create/save multiple NTRIP profiles in the Explorer app
Specifications
| Category | Details |
|---|---|
| Model Number | EVO2-640T-RTK-V3-BUN |
| Brand | Autel Robotics |
| Category | Drones / Commercial Drones |
| Mfr ID | AUTEL |
| UPC Code | 889520204422 |
| Country of Origin | China |
| Shipping Weight | 27.9 lbs |
| UPS Shippable | Yes |
| RTK System | RTK module with PPK & time sync; supports Base Station / NTRIP |
| Thermal Camera | 640×512 @ 30 Hz, 13 mm lens, 16× digital / 4× lossless zoom, 10 palettes, PiP |
| Visible Camera | 0.8" 50 MP RYYB sensor |
| Radiometrics | Radiometric temperature detection; ±3 °C compensation |
| Flight Time | Up to 38 minutes |
| Max Speed | 45 mph |
| Transmission Range | Up to 9 miles |
| Obstacle Avoidance | 360°, 19 sensor groups |
| Missions | Rectangular, Polygon; multi-battery mission resume |
| Color Profile | 10-bit A-Log |
Package Includes
-
Autel EVO II Dual 640T RTK Drone (V3)
-
RTK Module (installed)
-
Rugged hard carrying case
-
Intelligent flight batteries (bundle)
-
Charging hub & power adapter
-
Remote controller
-
Propellers
-
Cables & documentation
(Exact accessory counts may vary by bundle; list on your SKU as needed.)
FAQ
FAQ – Autel EVO II Dual 640T RTK V3
What is the main difference between the RTK Series and other EVO II products?
The EVO II RTK Series includes a high-precision RTK positioning and navigation module that delivers centimeter-level accuracy. Other EVO II aircraft do not have this integrated RTK/PPK capability.
What is the effective image-transmission range?
In open, interference-free conditions: up to 9 km under FCC standards and 5 km under CE standards (2.4 GHz band).
Can mapping continue if the transmission signal drops?
Yes. During real-time mapping, if the image-transmission link is lost temporarily, the aircraft resumes mapping automatically once the connection is restored.
What is the screen size and resolution of the remote controller?
The controller features a built-in 3.26-inch touch screen with 854 × 480 pixel resolution and ultra-bright display for outdoor visibility.
Which RTK base-station modes are supported?
The aircraft currently supports the A-RTK base-station mode and is compatible with NTRIP network services.
What is the RTK positioning accuracy?
Horizontal accuracy: ≈ 1 cm + 1 ppm · D Vertical accuracy: ≈ 1.5 cm + 1 ppm · D (where D is the baseline distance in kilometers).
What is the difference between RTK and PPK modes, and how should I choose?
Both deliver centimeter-grade accuracy. RTK provides real-time correction and is best when network communication is available. PPK records data for post-processing and is ideal where no reliable network exists or real-time feedback is not required.
Does the EVO II RTK Series output absolute or relative coordinates?
It outputs absolute coordinate measurements, referenced to the global RTK coordinate system.
Does the aircraft support lossless zoom?
Yes — the EVO II RTK supports up to 4× lossless zoom for optical detail retention and additional 16× digital zoom for extended reach.
Which Drone Should I Choose
Autel Enterprise Drone Lineup – Master Comparison Chart
| Model | EVO Lite 6K Enterprise STD |
EVO Lite 6K Enterprise Premium |
EVO Lite 640T Enterprise STD |
EVO Lite 640T Enterprise Premium |
EVO Max 4T XE Bundle |
EVO Max 4T XE Nest |
EVO II Pro 6K Rugged V3 |
EVO II Pro 6K Enterprise V3 |
EVO II Dual 640T Enterprise V3 |
EVO II Dual 640T RTK V3 |
EVO II Pro 6K RTK V3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Camera System | 6K Visible (1" CMOS) | 6K Visible (1" CMOS) | 6K Visible + 640×512 Thermal | 6K Visible + 640×512 Thermal | Wide + Zoom + Thermal + LRF | Wide + Zoom + Thermal + LRF | 6K Visible (1" CMOS) | 6K Visible (1" CMOS) | 50 MP RYYB + 640×512 Thermal | 50 MP RYYB + 640×512 Thermal + RTK | 6K Visible (1" CMOS) + RTK |
| Thermal Imaging | — | — | 640×512 / 30 Hz | 640×512 / 30 Hz | Integrated Thermal + Zoom | Integrated Thermal + Zoom | — | — | 640×512 / 30 Hz | 640×512 / 30 Hz | — |
| RTK Support | No | No | No | No | No (RTK optional module) | No (RTK optional module) | No | Optional (via port) | No | Yes – Built-In | Yes – Built-In |
| Flight Time | Up to 40 min | Up to 40 min | Up to 40 min | Up to 40 min | Up to 42 min | Up to 42 min | Up to 40 min | Up to 40 min | Up to 38–42 min | Up to 38–42 min | Up to 38–42 min |
| Transmission Range | 7.5 miles | 7.5 miles | 7.4 miles | 7.4 miles | 12.4 miles | 12.4 miles | 9.3 miles | 9.3 miles | 9.3 miles | 9.3 miles | 9.3 miles |
| Controller | Standard Controller | Smart Controller SE V2 (6") | Standard Controller | Smart Controller SE V2 (6") | Smart Controller V3 (7.9") | Smart Controller V3 (7.9") | Smart Controller V3 (7.9") | Smart Controller V3 (7.9") | Smart Controller V3 (7.9") | Smart Controller V3 (7.9") | Smart Controller V3 (7.9") |
| Obstacle Avoidance | 3-Way Binocular | 3-Way Binocular | 3-Way Binocular | 3-Way Binocular | 720° Omnidirectional | 720° Omnidirectional | 360° | 360° | 360° | 360° | 360° |
| Weight | 866 g | 866 g | 866 g | 866 g | Approx. 3.6 lb | Approx. 3.6 lb | 2.5–3 lb class | 2.5–3 lb class | 2.5–3 lb class | 2.5–3 lb class | 2.5–3 lb class |
| Best For | Inspections, documentation, mapping | Professional teams needing premium controller | SAR, public safety, heat detection | Gov./public safety needing full package | Public safety, defense, inspection, multi-drone ops | Remote operations via Nest docking | 6K imaging, inspections | Enterprise missions with accessories | SAR, firefighting, inspection w/ thermal | Thermal + centimeter-level mapping | 6K visual + centimeter-level mapping |
Which Autel Enterprise Drone Is Right for You?
1. Do you need thermal imaging?
• Yes → Go to Step 2 • No → Choose EVO Lite 6K Enterprise or EVO II Pro 6K (best visual-only models)
• Yes → Go to Step 2 • No → Choose EVO Lite 6K Enterprise or EVO II Pro 6K (best visual-only models)
2. Do you need the most advanced thermal + zoom + laser rangefinder?
• Yes → Choose EVO Max 4T XE (Autel’s top-tier multi-sensor platform) • No → Go to Step 3
• Yes → Choose EVO Max 4T XE (Autel’s top-tier multi-sensor platform) • No → Go to Step 3
3. Do you need RTK (centimeter-level mapping accuracy)?
• Yes → Choose EVO II Dual 640T RTK V3 • No → Choose EVO II Dual 640T Enterprise V3 or EVO Lite 640T Enterprise
• Yes → Choose EVO II Dual 640T RTK V3 • No → Choose EVO II Dual 640T Enterprise V3 or EVO Lite 640T Enterprise
4. Do you need the lightest/most portable thermal drone under 900g?
• Yes → Choose EVO Lite 640T Enterprise • No → Choose EVO II Dual 640T Enterprise V3 (larger, more capable)
• Yes → Choose EVO Lite 640T Enterprise • No → Choose EVO II Dual 640T Enterprise V3 (larger, more capable)
5. Do you need long-term automated remote operations (no pilot needed on site)?
• Yes → Choose EVO Max 4T XE Nest (Autel remote docking solution) • No → All other models are suitable
• Yes → Choose EVO Max 4T XE Nest (Autel remote docking solution) • No → All other models are suitable
6. Do you need the best imaging drone without thermal?
• Budget / ultra-light → EVO Lite 6K Enterprise • Maximum performance / pro inspections → EVO II Pro 6K Enterprise V3
• Budget / ultra-light → EVO Lite 6K Enterprise • Maximum performance / pro inspections → EVO II Pro 6K Enterprise V3
Best Autel Drone For Every Mission Type
🔥 Best Drone for Search & Rescue (SAR)
EVO II Dual 640T Enterprise V3 — thermal + long flight time + AI tracking.
🚒 Best Drone for Firefighting & Hotspot Detection
EVO Max 4T XE — thermal + zoom + laser rangefinder + omnidirectional avoidance.
🚓 Best Drone for Law Enforcement
EVO Lite 640T Enterprise — lightweight thermal + AI target recognition + secure encryption.
🏗️ Best Drone for Industrial/Utility Inspection
EVO II Pro 6K Enterprise V3 — ultra-sharp 6K imaging + accessories + long flight time.
🛰️ Best Drone for Mapping & Surveying (Without Thermal)
EVO II Pro 6K RTK V3 — centimeter accuracy + RTK + consistent flight paths.
🛰️ Best Drone for Mapping & Thermal Surveys
EVO II Dual 640T RTK V3 — thermal + RTK + industrial-grade imaging.
🌉 Best Drone for Bridge / Structure / Utility Pole Inspection
EVO Max 4T XE — multi-sensor payload + laser rangefinder + superior navigation.
🧳 Best Drone for Rapid Deployment / Single Operator Missions
EVO Lite 6K Enterprise or EVO Lite 640T Enterprise — both under 900g.
🌐 Best Drone for Remote, Autonomous Operations
EVO Max 4T XE Nest — designed for remote docking + scheduled autonomous missions.
💰 Best Value Enterprise Thermal Drone
EVO Lite 640T Enterprise — lightweight, affordable, highly capable.
Find Your Ideal Autel Enterprise Drone
Answer a few quick questions and we’ll match the best model for your mission.
Choose by Mission
Choose by Mission
Jump straight to the best Autel drone for your operation.
🚓
Law Enforcement
EVO Lite 640T Enterprise — lightweight thermal + AI recognition.
🆘
Search & Rescue
EVO II Dual 640T Enterprise V3 — thermal intel + long endurance.
🚒
Fire Response
EVO Max 4T XE — thermal + zoom + laser rangefinder.
🛰️
Mapping (Visual)
EVO II Pro 6K RTK V3 — 6K imaging with centimeter accuracy.
🌡️
Mapping (Thermal)
EVO II Dual 640T RTK V3 — thermal + RTK for thermal surveys.
🤖
Remote Ops
EVO Max 4T XE Nest — autonomous docking & scheduled missions.
🏭
Industrial Inspection
EVO II Pro 6K Enterprise V3 — 6K visual + enterprise accessories.
🧳
Rapid Deployment
EVO Lite 6K Enterprise — under 900 g, 6K imaging, quick launch.
