Description
Shipping & Returns

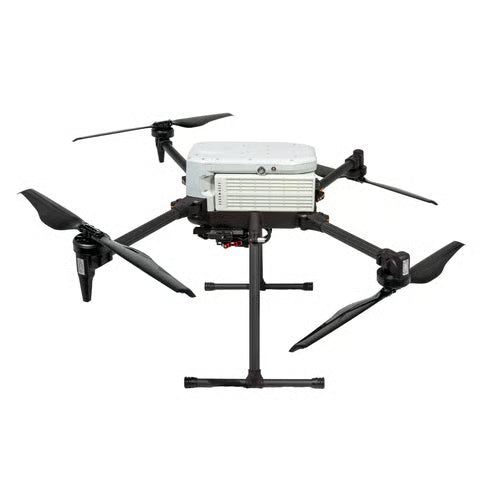

The Inspired Flight IF800 Quadcopter with GS-ONE Ground Control Station is a professional enterprise drone platform designed for industrial inspection, mapping, public safety, infrastructure monitoring, and government-focused aerial operations. Featuring a foldable quadcopter airframe, modular payload compatibility, and NDAA-aligned architecture, the IF800 is engineered for organizations requiring secure and adaptable aerial deployment capabilities.
Enterprise Flight Performance
- Flight Endurance: Up to 54 minutes of flight time depending on payload configuration and operating conditions.
- Payload Capacity: Supports payloads up to 3.0 kg (6.6 lbs).
- Maximum Flight Speed: Up to 22 m/s (49 mph).
- Wind Resistance: Designed for operation in winds up to 10 m/s with higher gust tolerance.
- Foldable Airframe: Compact transport configuration designed for field deployment and operational mobility.
Secure Enterprise Platform
- NDAA Compliant: Platform architecture aligned for organizations requiring NDAA-focused sourcing considerations.
- Blue UAS Aligned: Designed for supported government and enterprise operational workflows.
- GS-ONE Ground Control Station: Ruggedized mission controller with integrated display and field-ready operation.
- Transmission System: Supports long-range operational connectivity under appropriate operating conditions.
Flight Systems & Navigation
- Flight Controller: CubePilot Cube Blue H7 flight controller with triple redundant IMU architecture.
- GNSS System: Dual CubePilot Here4 Blue positioning modules.
- Ground Sensor: Integrated LightWare SF000/B downward sensing system.
- Payload Interface: IF800 Universal Payload Interface for supported payload integration.
- Operating Software: ArduPilot-based flight software platform.
Flight Modes & Operational Functions
- Position Hold: GPS-assisted hover stabilization and position maintenance.
- Loiter Mode: Precision hovering with controlled manual movement.
- Waypoint Missions: Supports automated route and waypoint-based operations.
- Return to Launch: Automated return-to-home functionality.
- Altitude Hold: Maintains altitude stabilization during supported operating conditions.
Physical Specifications
| Diagonal Size | 905 mm |
| Folded Dimensions | 36 × 44 × 20 cm |
| Flight Ready Dimensions | 132 × 114 × 52 cm |
| Aircraft Weight (without batteries) | 4.2 kg (9.2 lbs) |
| Weight with Batteries | 8.5 kg (18.7 lbs) |
| Maximum Takeoff Weight | 11.5 kg (25.3 lbs) |
| Operating Temperature | -20°C to 45°C |
Included Components
- 1 × Inspired Flight IF800 Quadcopter
- 1 × GS-ONE Remote Controller
- 2 × Flight Batteries
- 1 × Battery Charger
- 1 × Rugged Transport Case
Important Product Information
| Model | Inspired Flight IF800 |
| Compliance | Blue UAS and NDAA aligned platform. |
| Payload Compatibility | Payloads, cameras, LiDAR systems, and sensors sold separately unless otherwise specified. |
| Commercial Use | Commercial drone operation may require FAA registration and compliance with applicable regulations. |
| Specification name | Specification Value |
|---|---|
| Camera features | Digital zoom, Image stabilization, Remote control, Waterproof |
| Camera HD type | 4K |
| Camera sensor type | CMOS |
| Color pattern | Black, Gray |
| Connectivity technology | Wireless |
| Power source | Battery-powered |
