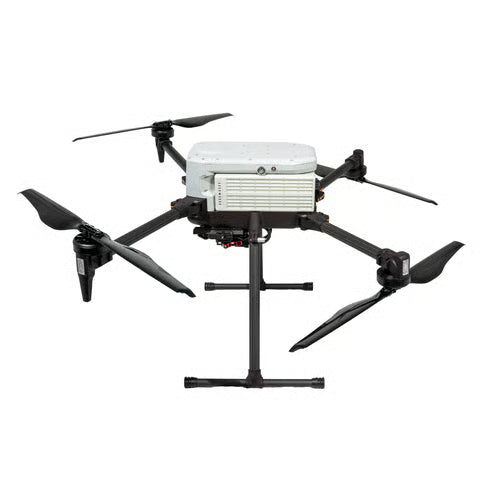

The Inspired Flight IF800 Tomcat + GS-ONE + Gremsy VIO F1 Bundle is an NDAA-compliant, Blue UAS-approved aerial platform engineered for professional reconnaissance and industrial inspection. This system integrates the Gremsy VIO F1 EO/IR sensor—featuring a 4K zoom camera, a 640x512 radiometric thermal imager, and a 2400 m laser rangefinder—with the IF800's high-endurance flight architecture. Controlled via the rugged GS-ONE Ground Control Station, this American-made bundle provides a secure solution for search and rescue (SAR), public safety, and critical infrastructure monitoring.
Gremsy VIO F1 EO/IR Payload Intelligence
- Dual-Sensor Imaging: Combines high-resolution 4K optical zoom for day-time detail with 640x512 radiometric thermal sensing for night-time and heat-signature detection.
- Integrated Laser Rangefinder: Precisely measure target distances up to 2400 m, providing GPS coordinates for tactical awareness and mapping accuracy.
- Radiometric Data: Thermal sensor captures temperature data per pixel, essential for utility inspections and identifying structural anomalies.
- 3-Axis Stabilization: The Gremsy gimbal system maintains a stable horizon and smooth video feed during high-velocity flight or wind-affected hovering.
Enterprise Security & Compliance
- Blue UAS Listed: Formally approved for Department of Defense (DoD) procurement and federal government operations.
- NDAA Compliant: Engineered without restricted critical components to meet domestic security standards for public safety and utility agencies.
- AES-256 Encrypted Communication: Utilizes secure data links between the IF800 and GS-ONE station to safeguard sensitive telemetry and video feeds.
- American-Made Reliability: Designed and manufactured in the USA by Inspired Flight for maximum supply chain transparency.
IF800 Tomcat Flight Performance
- Endurance: Up to 54 minutes of flight time (no payload); approx. 35–40 minutes in this specific EO/IR configuration.
- Payload Capacity: Heavy-lift 6.6 lb (3 kg) limit supports multi-sensor integration without compromising flight stability.
- Hot-Swappable Battery System: Dual intelligent batteries allow for continuous operation by swapping power without fully deactivating the aircraft systems.
GS-ONE Ground Control Station
- High-Visibility Interface: 7-inch, 1200-nit brightness touchscreen designed for telemetry and live-feed visibility in direct sunlight.
- Ruggedized Ergonomics: Field-ready housing with IP55-rated protection against dust and low-pressure water spray.
- Extended Runtime: Provides up to 5 hours of operation with hot-swappable batteries, optimized for multi-sortie missions.
Technical Specifications
| Thermal Resolution | 640 × 512 Radiometric |
| Laser Rangefinder | Up to 2400 m |
| Visual Resolution | 4K Optical Zoom |
| Compliance | NDAA, Blue UAS |
Bundle Contents & Hardware Requirements
Included in Bundle: IF800 Tomcat Aircraft, Gremsy VIO F1 EO/IR Gimbal/Sensor, GS-ONE Station, and Flight Batteries.
Important Note: This is a hardware and sensor bundle. Specialized analytics software (for thermal processing or automated photogrammetry) is sold separately.
| Specification name | Specification Value |
|---|---|
| Camera features | Digital zoom, Image stabilization, Remote control, Waterproof |
| Camera HD type | 4K |
| Camera sensor type | CMOS |
| Color pattern | Black, Gray |
| Connectivity technology | Wireless |
| Power source | Battery-powered |
