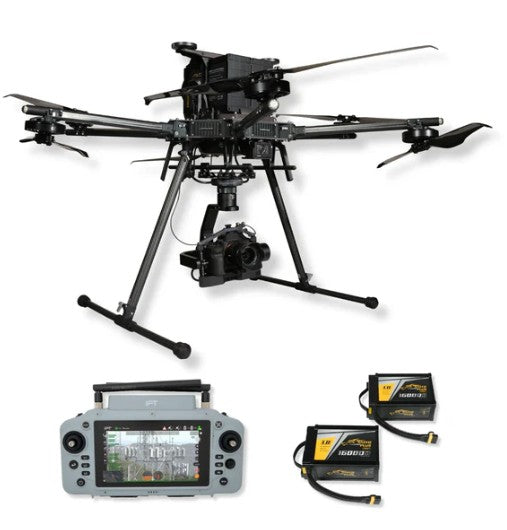

The Inspired Flight IF1200A with GS-ONE & Sony ILX-LR1 Bundle is a heavy-lift enterprise drone solution designed for aerial mapping, surveying, infrastructure inspection, and high-resolution imaging workflows. Combining the IF1200A hexacopter platform with the Sony ILX-LR1 imaging payload and GS-ONE Ground Control Station, this integrated system is engineered for organizations requiring secure, NDAA-aligned aerial data collection capabilities.
High-Resolution Imaging Platform
- Sony ILX-LR1 Payload: Full-frame 61MP imaging camera designed for professional aerial imaging and mapping workflows.
- Remote Camera Control: Supports remote shutter triggering and exposure management during flight operations.
- Dovetail Kit 3.0: Included mounting interface designed for payload integration compatibility.
- Mapping & Survey Applications: Suitable for photogrammetry, infrastructure inspection, surveying, and geospatial imaging workflows.
Heavy-Lift Flight Performance
- Payload Capacity: Supports payloads up to 8.7 kg (19.1 lbs).
- Maximum Flight Time: Up to 43 minutes depending on payload configuration and operating conditions.
- Maximum Flight Speed: Up to 25 m/s (56 mph).
- Wind Resistance: Designed for operation in winds up to 12 m/s with additional gust tolerance.
- Hot-Swappable Battery Design: Dual battery architecture designed to reduce operational downtime between missions.
Secure Enterprise Architecture
- Blue UAS Aligned: Designed for supported government and enterprise operational environments.
- NDAA Compliant: Platform architecture aligned for organizations requiring NDAA-focused sourcing considerations.
- GS-ONE Ground Control Station: Ruggedized enterprise controller with integrated display and field-ready operation.
- American Support Infrastructure: Domestic support and operational service infrastructure.
Flight Systems & Navigation
- Flight Controller: CubePilot Cube Blue H7 flight controller with triple redundant IMUs.
- GNSS System: Dual CubePilot Here3 M8P positioning modules.
- Payload Interface: IF1200A Universal Payload Interface for supported payload integrations.
- Operating Software: ArduPilot-based flight software platform.
- Mission Modes: Supports waypoint missions, position hold, return-to-launch, and altitude hold functionality.
Physical Specifications
| Diagonal Size | 1,025 mm |
| Folded Dimensions | 47.5 × 49.5 × 47 cm |
| Flight Ready Dimensions | 165.5 × 154 × 76.5 cm |
| Aircraft Weight (without batteries) | 7.8 kg (17.2 lbs) |
| Weight with Batteries | 16.3 kg (35.9 lbs) |
| Maximum Takeoff Weight | 25 kg (55 lbs) |
Included Components
- 1 × Inspired Flight IF1200A Hexacopter with GS-ONE Ground Control Station
- 1 × Inspired Flight IF1200 Battery Set
- 1 × IF1200 Dovetail Kit 3.0
- 1 × Sony ILX-LR1 Payload
Important Product Information
| Platform | Inspired Flight IF1200A |
| Camera Payload | Sony ILX-LR1 Full-Frame Imaging Camera |
| Compliance | Blue UAS and NDAA aligned platform. |
| Payload Configuration | Payload integrations and mission configurations may vary depending on operational requirements. |
| Commercial Use | Commercial drone operation may require FAA registration and compliance with applicable regulations. |
