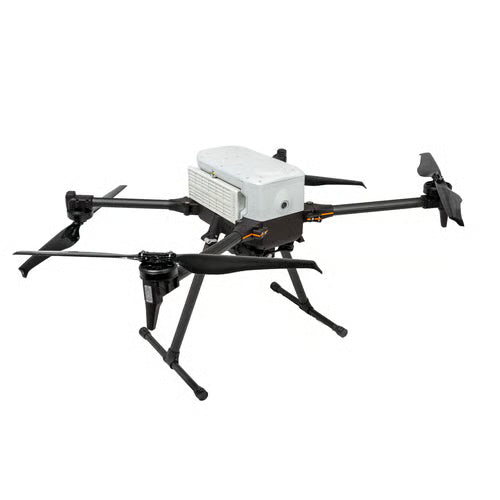

The Inspired Flight IF800 Tomcat + Blue Herelink + Sony ILX-LR1 Bundle is an NDAA-compliant, Blue UAS-listed aerial imaging platform engineered for high-precision mapping and industrial inspection. This enterprise-grade system integrates the Sony ILX-LR1 61MP full-frame camera—a specialized industrial sensor—with the IF800's high-endurance flight controller. Managed via the secure Blue Herelink Ground Control Station, this bundle provides a domestic, secure solution for government, public safety, and geospatial professionals requiring high-resolution data capture.
Sony ILX-LR1 High-Resolution Imaging
- 61MP Full-Frame Sensor: Delivers ultra-high-resolution imagery optimized for large-scale 2D photogrammetry and 3D terrain modeling.
- Industrial-First Form Factor: Designed specifically for drone integration, the camera body weighs only 243g, maximizing aircraft flight endurance.
- Interchangeable E-Mount: Supports a wide array of Sony E-mount lenses to adapt to varying mission requirements and altitudes.
- Remote Triggering & Control: Adjust aperture, shutter speed, and ISO directly through the Blue Herelink interface for real-time sensor optimization.
Enterprise Flight Performance
- Endurance: Achieves up to 54 minutes of flight time (unloaded); approx. 38–42 minutes with the Sony ILX-LR1 payload configuration.
- Hot-Swappable Battery System: Dual intelligent batteries allow for "hot swapping" at the landing zone, maintaining system power and minimizing downtime between sorties.
- Heavy-Lift Capacity: Supports up to 6.6 lb (3 kg) of total payload, allowing for simultaneous integration of secondary sensors or specialized gimbals.
Blue Herelink Secure Control Station
- Extended Transmission: Proprietary secure data link provides an operational signal range of up to 20 km (12.4 miles) for long-distance missions.
- Blue UAS Compliant: Features an integrated Android-based tablet with secure HD video transmission and hardware controls.
- Mission Planning: Optimized for QGroundControl and other open-source mission suites for automated waypoint and survey execution.
Technical Specifications
| Compliance | NDAA, Blue UAS Listed |
| Camera Resolution | 61 Megapixels |
| Max Signal Range | 20 km (12.4 mi) |
| Max Payload | 6.6 lbs (3.0 kg) |
Bundle Contents & Mandatory Exclusions
Included in Bundle: IF800 Tomcat Aircraft, Sony ILX-LR1 Camera Body, Gremsy Gimbal (Optimized for ILX), Blue Herelink Controller, and Two (2) Smart Flight Batteries.
Important: The Sony ILX-LR1 is a body-only camera. E-mount lenses and photogrammetry software (Pix4D, DroneDeploy, etc.) are NOT included and must be purchased separately.
| Specification name | Specification Value |
|---|---|
| Camera features | Remote control |
| Camera HD type | HD |
| Camera sensor type | CMOS |
| Color pattern | Black |
| Connectivity technology | Wireless |
| Material | Metal, Plastic |
| Power source | Battery-powered |
